Siemens Sinumerik 6FC5203-0AF03-0AA0 OP 015 Operator Panel 6FC52030AF030AA0

Description of Siemens SINUMERIK 6FC5203-0AF03-0AA0 Operator Panel

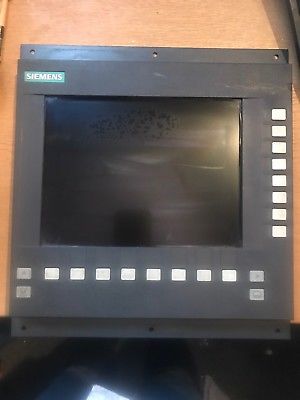

The Siemens SINUMERIK 6FC5203-0AF03-0AA0 Operator Panel, also known as the SINUMERIK OP 015 operator panel front, is a 15-inch industrial CNC operator interface designed for machine-tool control and visualization applications. The OP 015 combines a 15-inch TFT color display, 1024 × 768 XGA resolution, membrane softkeys, status LEDs, and a front USB interface in a rugged panel-mount design. Siemens specifies the 6FC5203-0AF03-0AA0 as an OP 015 operator panel front with 19-inch mounting format and IP65 protection at the front. Designed for integration with compatible SINUMERIK CNC control architectures, the Siemens 6FC5203-0AF03-0AA0 provides operators with a practical interface for monitoring machine status, navigating CNC functions, entering commands, and interacting with the machine control system. It can be combined with compatible PCU and TCU configurations, depending on the SINUMERIK system architecture. The OP 015 features 8 + 4 horizontal membrane softkeys and 8 vertical membrane softkeys, providing convenient access to machine-control menus and functions. A compatible full CNC keyboard such as the Siemens KB 483C can also be used as an input keyboard. The 15-inch TFT color display provides 1024 × 768-pixel XGA resolution, allowing CNC operating screens, machine parameters, program information, alarms, diagnostics, and status information to be displayed clearly. The front panel incorporates status LEDs for power supply and overtemperature monitoring, while the front USB interface provides an additional connection point for compatible service or operator functions. With a maximum power consumption of 24 W, 5 V DC supply through the associated PCU, TCU, or video-link receiver, and an IP65-rated front, the 6FC5203-0AF03-0AA0 is designed for the demanding operating environment associated with industrial CNC machine tools. The rear side is rated IP00, so installation should provide appropriate protection for the rear of the unit. The Siemens SINUMERIK OP 015 is particularly relevant for machine builders, CNC system integrators, maintenance departments, automation engineers, and manufacturers looking to replace or maintain an existing operator interface on compatible SINUMERIK equipment.

Important product identification: Siemens part number 6FC5203-0AF03-0AA0 corresponds to the SINUMERIK OP 015 operator panel front. It should not be confused with the OP 015A or TP 015A variants, which have different Siemens order numbers and configurations. (Siemens Industry Support)

Technical Specifications of Siemens Sinumerik 6FC5203-0AF03-0AA0 OP 015 Operator Panel

Specification	Details
Manufacturer	Siemens
Product Family	SINUMERIK
Product Type	Operator Panel Front
Model	OP 015
Siemens Part Number	6FC5203-0AF03-0AA0
Display Type	TFT color display
Display Size	15 inches
Display Resolution	1024 × 768 pixels
Resolution Standard	XGA
Operator Controls	Membrane softkeys
Horizontal Softkeys	8 + 4
Vertical Softkeys	8
USB Interface	Front USB interface
Status Indicators	Power supply and overtemperature LEDs
Supply Voltage	5 V DC
Power Supply Method	Via PCU, TCU, or video-link receiver
Maximum Power Consumption	24 W
Front Protection Rating	IP65
Rear Protection Rating	IP00
Mounting Format	19-inch mounting format
Mounting Height	7 HU
Panel Cutout	450 × 290 mm
Overall Dimensions (W × H × D)	483 × 310 × 52 mm
Approximate Weight	7 kg
Operating Temperature – Front	0 to 45 °C
Operating Temperature – Rear	0 to 55 °C
Storage Temperature	-20 to +60 °C
Transport Temperature	-20 to +60 °C
Operating Humidity	5–80% relative humidity
Storage Humidity	5–95% relative humidity at 25 °C
Transport Humidity	5–95% relative humidity at 25 °C
Humidity Classification	EN 60721-3-3, Class 3K5
Mounting	Rear tension jacks
Compatible Keyboard	KB 483C full CNC keyboard
System Integration	Compatible PCU/TCU configurations
Application	SINUMERIK CNC machine-tool operator interface

The core electrical, environmental, dimensional, display, protection, and interface specifications above are based on Siemens documentation for the OP 015. (Siemens Industry Support)

Key Features of Siemens Sinumerik 6FC5203-0AF03-0AA0 OP 015 Operator Panel

15-Inch TFT Color Display

The Siemens 6FC5203-0AF03-0AA0 features a 15-inch TFT color display with 1024 × 768 XGA resolution, providing a clear operator interface for CNC machine information, operating screens, programs, diagnostics, alarms, and machine data.

Dedicated CNC Softkeys

The OP 015 incorporates 8 + 4 horizontal and 8 vertical membrane softkeys. These dedicated controls allow operators to navigate available CNC functions and interact efficiently with the SINUMERIK operating environment.

Industrial Panel-Mount Construction

Designed as a CNC operator panel front, the unit uses a 19-inch mounting format and rear tension-jack mounting arrangement. Its front panel provides IP65 protection, making the operator-facing surface suitable for demanding industrial environments when correctly installed.

Front USB Interface

A front USB interface provides convenient access for compatible operator and service functions, depending on the connected SINUMERIK system configuration.

Power and Temperature Status Monitoring

Integrated status LEDs provide indication for power supply and overtemperature conditions, helping operators and maintenance personnel identify relevant panel status information.

Compatible with SINUMERIK CNC Architectures

The OP 015 was designed for integration with compatible SINUMERIK systems and can be combined with appropriate PCU and TCU configurations. Siemens documentation identifies the OP 015 for use with various SINUMERIK configurations, including 810D/840D systems and compatible PCU/NCU architectures.

Suitable for CNC Replacement Applications

The exact 6FC5203-0AF03-0AA0 part number is useful when sourcing a replacement for an existing SINUMERIK OP 015 operator panel. Because SINUMERIK operator panels have multiple visually similar variants, matching the complete Siemens order number is important before purchasing or installing a replacement.

Applications of Siemens 6FC5203-0AF03-0AA0 SINUMERIK OP 015 Operator Panel

The Siemens SINUMERIK 6FC5203-0AF03-0AA0 OP 015 operator panel is intended for industrial CNC operator-interface applications, particularly where a compatible SINUMERIK control architecture requires a 15-inch operator panel front. Typical applications include:

• CNC machine tools
• CNC machining centers
• CNC milling machines
• CNC turning machines
• CNC production machinery
• Metalworking machinery
• Machine-tool control panels
• CNC retrofit projects
• CNC control-system upgrades
• Industrial machine operator stations
• CNC maintenance and repair
• Machine-tool replacement applications
• Manufacturing automation systems
• SINUMERIK-based machine installations

The panel can be used with compatible SINUMERIK system configurations and associated PCU, TCU, NCU, and CNC components. Siemens documentation lists compatibility across several SINUMERIK architectures, so the specific machine configuration should be verified before replacement.

Siemens 6FC5203-0AF03-0AA0 Compatibility and Replacement Considerations

When purchasing a replacement Siemens 6FC5203-0AF03-0AA0, it is important to verify the complete MLFB/order number rather than relying only on the OP 015 product name. Siemens produced several operator-panel variants with similar specifications. For example, the OP 015A uses a different order number, while the TP 015A is a touch-panel variant. The 6FC5203-0AF03-0AA0 specifically identifies the OP 015 configuration. Before ordering, verify:

1. Siemens part number: 6FC5203-0AF03-0AA0
2. Operator panel model: SINUMERIK OP 015
3. Display size: 15-inch
4. Display resolution: 1024 × 768 XGA
5. Membrane-key configuration
6. Required CNC/PCU/TCU architecture
7. Physical panel dimensions and cutout
8. Electrical and environmental requirements
9. Existing machine-control configuration
10. Whether the application requires an OP 015, OP 015A, or TP 015A variant

This verification is particularly important when replacing obsolete or discontinued CNC hardware because visually similar Siemens operator panels can have different order numbers and system requirements.

Why Choose the Siemens SINUMERIK OP 015?

The Siemens SINUMERIK OP 015 6FC5203-0AF03-0AA0 combines a large 15-inch industrial display with dedicated membrane softkeys and a rugged panel-mount construction. Its XGA display, CNC-oriented operator controls, front USB interface, status indicators, and IP65-rated front make it a practical operator-interface component for compatible SINUMERIK CNC installations. For machine builders and maintenance teams, identifying the exact Siemens MLFB number is especially important when sourcing replacement CNC hardware. The 6FC5203-0AF03-0AA0 provides a precise identification for the OP 015 operator panel front rather than a generic SINUMERIK display or HMI.

Frequently Asked Questions

What is Siemens 6FC5203-0AF03-0AA0?

The Siemens 6FC5203-0AF03-0AA0 is a SINUMERIK OP 015 operator panel front. It features a 15-inch TFT color display, 1024 × 768 XGA resolution, membrane softkeys, status LEDs, and a front USB interface.

What is the Siemens 6FC5203-0AF03-0AA0 used for?

The 6FC5203-0AF03-0AA0 is used as an operator interface for compatible SINUMERIK CNC machine-control systems. It allows machine operators to view CNC information and interact with the control system through the display and dedicated softkeys.

What size display does the SINUMERIK OP 015 have?

The OP 015 has a 15-inch TFT color display with a resolution of 1024 × 768 pixels (XGA).

Does Siemens 6FC5203-0AF03-0AA0 have a touchscreen?

No. The 6FC5203-0AF03-0AA0 OP 015 uses membrane softkeys rather than a touchscreen. Siemens lists the OP 015 separately from touch-panel variants such as the TP 015A.

How many softkeys does the OP 015 have?

The Siemens OP 015 has 8 + 4 horizontal membrane softkeys and 8 vertical membrane softkeys.

What is the resolution of Siemens 6FC5203-0AF03-0AA0?

The display resolution is 1024 × 768 pixels, commonly referred to as XGA.

What is the supply voltage for the Siemens OP 015?

The OP 015 uses a 5 V DC supply, supplied through the associated PCU, TCU, or video-link receiver rather than being specified as a conventional standalone mains-powered panel.

What is the power consumption of 6FC5203-0AF03-0AA0?

The maximum specified power consumption is 24 W.

What is the IP rating of the Siemens OP 015?

The front of the Siemens OP 015 is rated IP65 according to EN 60529/IEC 60529. The rear is specified as IP00, so the rear installation environment should be appropriately protected.

What are the dimensions of Siemens 6FC5203-0AF03-0AA0?

The OP 015 measures approximately 483 × 310 × 52 mm (W × H × D). The specified panel cutout is approximately 450 × 290 mm.

What is the operating temperature of the OP 015?

The specified operating temperature is 0 to 45 °C at the front and 0 to 55 °C at the rear.

Can the Siemens 6FC5203-0AF03-0AA0 be used as a standalone CNC controller?

No. The 6FC5203-0AF03-0AA0 is an operator panel front, not a complete CNC controller. It is intended to operate as part of a compatible SINUMERIK CNC architecture with the required control, PCU/TCU, and associated system components.

Is Siemens 6FC5203-0AF03-0AA0 the same as OP 015A?

No. The OP 015 and OP 015A have different Siemens order numbers and configurations. The exact part number should always be checked before purchasing a replacement. Siemens identifies 6FC5203-0AF03-0AA0 specifically as the OP 015.

Is Siemens 6FC5203-0AF03-0AA0 suitable as a replacement part?

It can be suitable as a replacement where the existing machine specifically requires the SINUMERIK OP 015, 6FC5203-0AF03-0AA0 configuration. Compatibility should be confirmed against the machine’s existing SINUMERIK architecture and panel specifications before ordering.

What is the difference between OP 015 and TP 015A?

The OP 015 is a membrane-key operator panel, while the TP 015A is a touch-panel variant. They have different Siemens order numbers and should not automatically be treated as interchangeable.

Is Siemens 6FC5203-0AF03-0AA0 discontinued?

Some third-party industrial automation sources identify the 6FC5203-0AF03-0AA0 as a legacy/discontinued Siemens product. Because lifecycle and availability information can vary by market and date, buyers should verify current availability and replacement options when sourcing this part.

What should I verify before ordering Siemens 6FC5203-0AF03-0AA0?

Verify the complete Siemens order number (6FC5203-0AF03-0AA0), OP 015 model, 15-inch display, 1024 × 768 resolution, membrane-key configuration, physical dimensions, panel cutout, and compatibility with the existing SINUMERIK CNC architecture.
