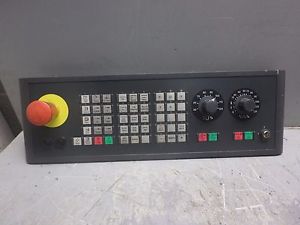

Siemens Sinumerik 6FC5303-0AF22-0AA1 Machine Control Panel 6FC53030AF220AA1

Description

• Extended Product Type: Operator Panel
• Product ID: 6FC5303-0AF22-0AA1
• Mitsubishi Type Designation: Operator Panel
• Place of Origin: Germany
• Brand Name: Siemens
• Model Number: 6FC53030AF220AA1

Siemens Sinumerik 6FC5303-0AF22-0AA1 MCP 483C PN machine control panel with mechanical keys is designed to permit user-friendly, well-structured operation of the machine functions. It is suitable for machine-level operation of milling, turning, grinding and special machines. Equivalent to 6FC53030AF220AA1

In addition to PROFINET functionality, SINUMERIK MCP 483C PN has also retained its complete Industrial Ethernet functionality. The network technology can be switched using DIP switches.

All keys are designed with replaceable key covers for machine-specific adaptations. The key covers can be freely inscribed using laser. Transparent key covers can be used as an alternative.

The machine control panel is secured from the rear using special clamps supplied with the panel.

• Mode selectors and function keys:
  • 50 keys with LEDs
  • Direction keys for milling machines with rapid traverse override (key covers for direction keys for turning machines are supplied in the accessories pack)
• Spindle control with spindle override/rapid traverse (rotary switch with 16 positions)
• Feed control with override feed/rapid traverse (rotary switch with 23 positions)
• Key-operated switch (four positions and three different keys)
• Emergency stop pushbutton (2 × (1 NO + 1 NC))
