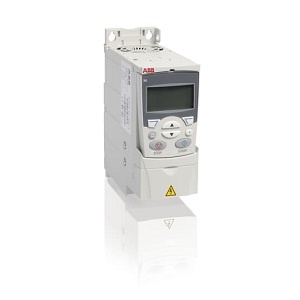

Description of ABB ACS310-03U-48A4-4+J400 AC Drive 30HP

Specification of ABB ACS310-03U-48A4-4+J400 AC Drive 30HP 22kW

• Primary brand: ABB
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: ACS310 series
• Network frequency: 60 Hz
• Functions: Variable Speed/Frequency Drive (VSD/VFD) / Inverter, PID control, Boosted energy, FlashDrop tool, Frequency limits to start and stop auxiliary motor, Diagnostics, Pump and fan control parameter (PFC), Date stamp, Auxiliary motors start and stop delay, Level control, Interlock, Start delay for speed controlled motor, Relay configuration, Real-time clock
• Design: EMC filter (disconnected), Load analyzer
• Supply voltage (AC): 380Vac-480Vac, 380Vac-480Vac (400Vac / 415Vac / 440Vac)
• Type of network: 3-phase / 3P
• Rated current: 48.4A (nom.; 380-480Vac)
• Rated active power (kW): 22kW (nom.; 380-480Vac)
• Rated power (HP): 30HP (nom.; 380-480Vac)
• Communication protocol: Modbus RTU, Modbus
• Mounting mode: Surface / wall
• Digital inputs: 1 x digital input (12-24Vdc; PNP/NPN; 0-16kHz pulse train) (DI1 START/STOP)
  • 1 x digital input (12-24Vdc; PNP/NPN; 0-16kHz pulse train) (DI2 FWD/REV)
  • 1 x digital input (12-24Vdc; PNP/NPN; 0-16kHz pulse train) (DI3 constant speed selection)
  • 1 x digital input (12-24Vdc; PNP/NPN; 0-16kHz pulse train) (DI4 programmable)
  • 1 x digital input (12-24Vdc; PNP/NPN; 0-16kHz pulse train) (DI5 ramp pair selection)
• Digital outputs: 1 x digital output (SPDT rly. contact; 0.5A at 30Vdc; 2A at 230Vac) (RO1)
  • 1 x digital output (30Vdc; PNP transistor; 100mA) (DO1)
• Analog inputs: 2 x analog inputs (0-10Vdc / 2-10Vdc / -10…+10Vdc / 0-20mA / 4-20mA / -20…+20mA) (AI1 / Ai2)
• Analog outputs: 1 x analog output (0-20mA / 4-20mA) (AO1)
• Degree of protection: IP20
• Dimensions: Frame size R4
• Ambient air temperature for operation: -10…+40 °C
• Current consumption: 74A, (With input reactor) 42A
• Contents: Panel mounting kit
• Power dissipation/losses: 588 W
• Application type: General purpose drives, Variable torque applications, Multipump and fan control
• Order code / Manufacturer SKU: 3AUA0000062530
• Manufacturer product status: Commercialized
• Equivalent to: ACS31003U48A44J400
• Compliant with standard(s): CE, IEC 60269, IEC 60721-3-3 1C2; 1S2; 2C2; 2S2; 3C2; 3S2, EN/IEC 61000-3-12, cUL, UL, EAC, RoHS, ISO 9001, ISO 14001, RCM

Benefits

• ABB general purpose drive ACS310 is easy to select and easy to use
• It is enough for most basic applications with no high overload demands
• ACS310 is suitable for wide range of variable torque applications and simple machines
• The drive’s dedicated pump and fan features lower operating costs / boost energy efficiency and reduces CO 2 emissions
• Included among these features are built-in PID controllers and PFC (pump and fan control) that varies the drive’s performance in response to changes in pressure / flow or other external data
• Among the pre-programmed protection functions is pump cleaning
• This prevents pump and pipe clogging by initiating a sequence of forward and reverse runs of the pump to clean the impeller
• The compact design and uniform dimensions make cabinet mounting of the drive straightforward thereby providing a fast and space saving installation
• The ACS310 drives have an embedded Modbus interface for system monitoring that saves the cost of external fieldbus devices and enables to integrate the drives easily with PLC
• When combined with pre-programmed application macros / an intuitive user interface and several assistant screens — installation time is further reduced while speeding up parameter setting and drive commissioning
• The ACS310 drives meet the needs of OEMs / logistical and technical distributors as well as the requirements of end users with pumping and ventilation applications
• The drives are supported by one of the most extensive global sales and service networks with presence in over 100 countries

Highlights
– Powerful set of pump and fan features
– Boosted energy efficiency
– Tailored for cabinet installations
– Clever drive commissioning assistants and convenient user interface
– Motor noise smoothing
– Worldwide availability and service
– Conformal coated boards
