Description

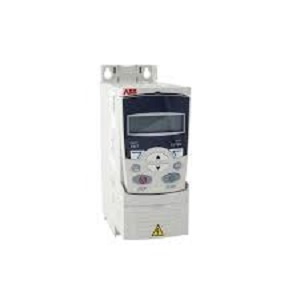

ABB ACS355-03U-04A1-4+J404+K454 Drive ACS35503U04A14J404K454

• Extended Product Type: AC Drive
• Product ID: ACS355-03U-04A1-4+J404+K454
• Item code: 3AUA0000079164
• ABB Type Designation: AC Drive

Description of ABB ACS355-03U-04A1-4+J404+K454 Drive 2HP

ABB ACS355-03U-04A1-4+J404+K454 Variable Speed/Frequency Drive (VSD/VFD) / Inverter for solar pumping stations with Basic control panel + brake chopper – with option +K454 – ABB (ACS355 series) – Rated input voltage 380Vac-480Vac (3-phase / 3P) – Rated current 4.1A (I2N; 380-480Vac) – Rated power 1.5kW (nom.; 380-480Vac) / 2HP (nom.; 380-480Vac) – IP20 – Frame size R1 – with PROFIBUS DP communication capability – Surface / wall mounting – with built-in MPPT (the most power output possible) + Built-in sensorless flow calculation – compatible with input voltages 380Vac-480Vac (400Vac / 415Vac / 440Vac) (3-phase / 3P) – item code #3AUA0000079164 – equivalent to ACS35503U04A14J404K454

Specifications of ABB ACS355-03U-04A1-4+J404+K454 Inverter 2HP 1.5kW

• Primary brand: ABB
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: ACS355 series
• Network frequency: 50 Hz
• Functions: Variable Speed/Frequency Drive (VSD/VFD) / Inverter for solar pumping stations, MPPT (the most power output possible), Built-in sensorless flow calculation, Real-time clock, Automatic start and stop, Design brake chopper
• Supply voltage (AC): 380Vac-480Vac, 380Vac-480Vac (400Vac / 415Vac / 440Vac)
• Type of network: 3-phase / 3P
• Rated current: 4.1A (I2N; 380-480Vac)
• Rated active power (kW): 1.5kW (nom.; 380-480Vac)
• Rated power (HP): 2HP (nom.; 380-480Vac)
• Mounting mode; Surface / wall
• Digital inputs: 1 x digital input (12-24Vdc; PNP/NPN) (DI1 STOP/START)
  • 1 x digital input (12-24Vdc; PNP/NPN) (DI2 FWD/REV)
  • 1 x digital input (12-24Vdc; PNP/NPN) (DI3 constant speed selection 1)
  • 1 x digital input (12-24Vdc; PNP/NPN) (DI4 Constant speed selection 2)
  • 1 x digital input (12-24Vdc; PNP/NPN; 0-16 kHz pulse train) (DI5 programmable)
• Digital outputs: 1 x digital output (SPDT rly. contact; 0.5A at 30Vdc; 5A at 230Vac) (RO1)
  • 1 x digital output (30Vdc; PNP transistor; 10Hz-16kHz; 100mA) (DO1)
• Analog inputs: 2 x analog inputs (0-20mA / 4-20mA / 0-10Vdc / 2-10Vdc) (AI1 / AI2)
• Analog outputs: 1 x analog output (0-20mA / 4-20mA) (AO1)
• Degree of protection: IP20
• Dimensions: Frame size R1
• Ambient air temperature for operation: -10…+40 °C
• Contents: Panel mounting kit
• Power dissipation/losses: 69 W
• Application type: Machinery drives, Solar pump drives, mixing applications, conveyors, packaging machines, bottling lines, winders
• Order code / Manufacturer SKU: 3AUA0000079164
• Manufacturer product status: Commercialized
• Equivalent to: ACS35503U04A14J404K454
• Compliant with standard(s): CE, IEC 60721-3-3 1C2; 1S2; 2C2; 2S2; 3C2; 3S2, EN/IEC 61000-3-12, cUL, UL, C-tick, EAC, RoHS, ISO 9001, ISO 14001, RCM

Benefits

• In the ABB machinery drives portfolio ACS355 represents the micro drive range — meeting requirements like compact size / being optimized for a lower power range / cost-effectiveness and ease of use
• By choosing an ABB machinery drive — machine builders not only get all the clever things inside the drive but also everything outside it – the entire global ABB
• This means a full range of products and services designed to support their business

Applications

• ABB machinery drives are designed to meet the requirements of an extensive range of machinery applications
• The drives are ideal for food and beverage / material handling / lifting / textile / printing / rubber and plastics / and woodworking applications

Highlights

– Exceptionally compact drives and uniform design
– Quick commissioning with application macros and panel assistants
– Safe torque off function (SIL3) as standard
– Sensorless vector control for induction motors and permanent magnet motors up to 599 Hz
– Built-in braking chopper
– Coated boards – all variants
– IP66 product variant for harsh environments and solar pump drive variant available
