ABB ACS380-040C-02A4-1+K454 AC Drive ACS380040C02A41K454

• Extended Product Type: AC Drives
• Product ID: ACS380-040C-02A4-1+K454
• Product ID: 3AXD50000031817+K454
• ABB Type Designation: AC Drives

Description of ABB ACS380-040C-02A4-1+K454 AC Drive

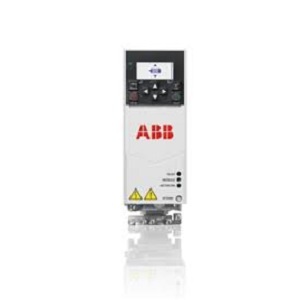

ABB ACS380-040C-02A4-1+K454 Variable Speed/Frequency Drive (VSD/VFD) / Inverter with EMC filter C3 / C4 + Assistant control panel + brake chopper – configured variant – with option +K454 – ABB (ACS380 series) – Rated input voltage 200Vac-240Vac (Single-phase / 1P) – Rated current 2.4A (nom.; 230Vac) – Rated power 0.37kW (nom.; 230Vac) – IP20 – Frame size R0 – with DeviceNet communication capability – Surface / wall mounting – with built-in Safe Torque Off (STO) – compatible with input voltages 200Vac-240Vac (208Vac / 220Vac / 230Vac) (Single-phase / 1P) – item code #3AUA0000230570 – equivalent to ACS380040C02A41K454

Specification of ABB ACS380-040C-02A4-1+K454 AC Drive

• Primary brand: ABB
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: ACS380 series
• Network frequency: 50-60 Hz
• Functions: Variable Speed/Frequency Drive (VSD/VFD) / Inverter, Safe Torque Off (STO), Energy optimizer, Diagnostics
• Design: EMC filter C3 / C4, Assistant control panel,  brake chopper, configured variant, with option +K454, option +K454 (DeviceNet)
• Supply voltage (AC): -240Vac, 200Vac-240Vac (208Vac / 220Vac / 230Vac)
• Type of network: Single-phase / 1P
• Rated current: 2.4A (nom.; 230Vac), 2.3A (LD Light Duty; 230Vac), 1.8A (HD Heavy-Duty; 230Vac), 3.2A (maximum; 230Vac)
• Rated active power (kW): 0.37kW (nom.; 230Vac), 0.37kW (LD Light Duty; 230Vac), 0.25kW (HD Heavy-Duty; 230Vac)
• Communication protocol: DeviceNet
• Mounting mode: Surface / wall
• Digital inputs: 1 x digital input (24Vdc) (DI1 START/STOP)
  • 1 x digital input (24Vdc) (DI2 FWD/REV)
  • 1 x digital input (24Vdc) (DI3 constant speed selection)
  • 1 x digital input (24Vdc) (DI4 constant speed selection)
  • 1 x digital input (24Vdc; can be used as a digital output) (DIO5 ramp set selection)
  • 1 x digital input (24Vdc; can be used as a digital output) (DIO6 READY TO RUN)
• Digital outputs: 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO1 FAULT)
• Analog inputs: 1 x analog input (0-10Vdc) (AI1 External frequency reference)
  • 1 x analog input (0-10Vdc) (AI2)
• Analog outputs: 1 x analog output (0-20mA) (AO1 output frequency)
• Degree of protection: IP20
• Dimensions: Frame size R0
• Ambient air temperature for operation: -10…+50 °C
• Ambient air temperature for storage: -40…+70 °C
• Contents: FDNA-01 interface
• Application type; Machinery drives, conveyors, mixers, extruders, winders, cranes
• Manufacturer product status: Commercialized
• Equivalent to: ACS380040C02A41K495
• Compliant with standard(s)CE, IEC 60721-3-1 Class 1C2/1S2, IEC 60721-3-2 Class 2C2/2S2, IEC 60721-3-3 Class 3C2; 3S2, IEC 61511 SIL 3, EN/IEC 61800-5-2, IEC 61508 ed2 SIL 3, IEC 62061 SIL CL 3, EN 61800-3, EN 61800-5-1, EN 61800-5-2, cUL, UL, EAC, RoHS, TUV, WEEE
• Benefits: ACS380 drives improve process performance / increase productivity / reduce external components and ensure machine and personnel safety
