Description

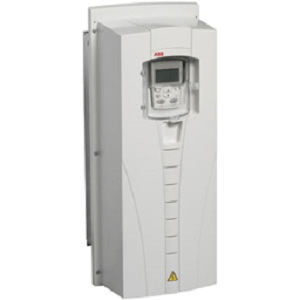

ABB ACS550-U1-023A-4+B055 Drive ACS550U1023A4B055 15HP

• Extended Product Type: AC Drives
• Product ID: ACS550-U1-023A-4+B055
• ABB Type Designation: AC Drives

Description of ABB ACS550-U1-023A-4+B055 AC Drive

ABB, ACS550-U1-023A-4+B055, ACS550, 15HP, 3-Phase, 380-480V (Input), Nema 1 Enclosure, Variable Frequency Drives

Specification of ABB ACS550-U1-023A-4+B055 AC VFD Drive

• Manufacturer: ABB
• Series: ACS550 Series
• Model #: ACS550-U1-023A-4+B055
• Enclosure: NEMA 12
• Cooling Type: Fan Cooled
• Horsepower: 15.0 HP
• Input Voltage(s): 400 – 480 VAC Input
• Output Voltage: 480 VAC Output
• Input Phase(s): Three Phase Input
• Output Phase: Three Phase Output
• Phase Converter: No
• Output Current: 23.0 Amps
• Digital Input(s): 6 Inputs (NPN)
• Digital Output(s): 3 Outputs (Relay)
• Analog Input(s): 2 Inputs (0 – 10 VDC / 4 – 20 mA)
• Analog Output(s): 2 Outputs (4 – 20 mA)
• Operating Mode(s): Sensor (Closed Loop) Vector Control (Requires Feedback Module),
  Sensor less (Open Loop) Vector Control, Speed Control (V / Hz), Torque Control (Constant), Torque Control (Variable
