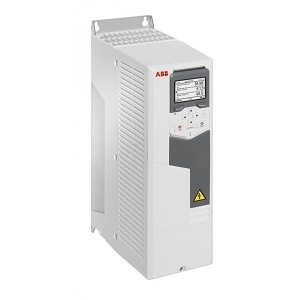

ABB ACS580-01-096A-4 AC Drive 75HP 96A ACS58001096A4

• Extended Product Type: AC Drive
• Product ID: ACS580-01-096A-4
• ABB Type Designation: AC Drive

Description of ABB ACS580-01-096A-4 AC Drive 75HP

Specification of ABB ACS580-01-096A-4 AC Drive 75HP 96A

• Primary brand: ABB
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: ACS580 series
• Network frequency: 47-63 Hz
• Functions; Variable Speed/Frequency Drive (VSD/VFD) / Inverter, STO Safe Torque OFF (SIL3 as per IEC61511 / SILCL3 as per IEC62061 / PLe ISO13849-1), PID control, Energy optimizer, Diagnostics, Pump and fan control parameter (PFC)
• Design: EMC filter, Assistant control panel, brake chopper, Choke
• Supply voltage (AC): 380Vac-480Vac, 380Vac-480Vac (400Vac / 415Vac / 440Vac)
• Type of network: 3-phase / 3P
• Rated current: 96A (nom.; 480Vac), 96A (LD Light Duty; 480Vac), 77A (HD Heavy-Duty; 480Vac), 139A (maximum; 480Vac)
• Rated power (HP)75HP (LD Light Duty; 480Vac), 60HP (HD Heavy-Duty; 480Vac)
• Communication protocol: Modbus RTU, Modbus
• Mounting mode: Surface / wall
• Digital inputs: 1 x digital input (24Vdc) (DI1 START/STOP)
  • 1 x digital input (24Vdc) (DI2 FWD/REV)
  • 2 x digital inputs (24vdc) (DI3 / DI4 constant speed selection)
  • 1 x digital input (24Vdc) (DI5 ramp pair selection)
  • 1 x digital input (24Vdc) (DI6)
• Digital outputs: 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO1 READY)
  • 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO2 RUNNING)
  • 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO3 FAULT)
• Analog inputs: 1 x analog input (0-10Vdc) (AI1 External frequency reference)
  • 1 x analog input (0-10Vdc) (AI2)
• Analog outputs: 1 x analog output (0-20mA) (AO1 inverter output frequency)
  • 1 x analog output (0-20mA) (AO2 inverter output current)
• Degree of protection: IP21, UL type 1
• Dimensions: Frame size R5
• Ambient air temperature for operation: -15…+50 °C
• Ambient air temperature for storage: -40…+70 °C
• Contents: ACS-AP-S panel
• Power dissipation/losses: 1510 W
• Application type: General purpose drives, blowers, centrifuges, compressors, conveyors, fans, mills, pumps
  separators, mixers, dryers, pelletizers, presses, winders, extruders, injection, molding machines, bleaching machines, drum, washers, jet dyeing, machines, stenter machines, stretchers, chippers, feeders, pickers, drying kilns, compressors, pump stations, fans, irrigators, sorters, conveyors
• Order code / Manufacturer SKU:
• Manufacturer product status: Commercialized
• Equivalent to: ACS58001096A4
• Compliant with standard(s): CE, IEC 60721-3-1 Class 1C2/1S2, IEC 60721-3-2 Class 2C2/2S2, IEC 60721-3-3 Class 3C2; 3S2, EN/IEC 61000-3-12, IEC 61508 ed2 SIL 3, IEC 61511 SIL 3, IEC 61800-9-2, IEC 62061 SIL CL 3, EN ISO 13849-1 PL e, EN 61800-3, EN 61800-5-1, EN 61800-5-2, cUL, UL, EAC, RoHS, ISO 9001
  ISO 14001, TUV Nord, UKCA, RCM, WEEE

Benefits

• The ACS580 is an all-compatible ABB general purpose drive offered in a range of wall-mounted drives or drive modules and cabinet-built drives
• It turns complicated to simple and controls processes productively and efficiently

One product with many applications

• ACS580 drives include all the essential components for typical light industry applications with a scalable offering from 0.75kW to 500kW
• The drive is ready to control compressors / conveyors / mixers / pumps and fans as well as many other variable and constant torque applications
• The all-compatible drives family ensures that you will always find the best drive for your needs
• These drives share a similar user interface and PC tools — making using and learning them fast and easy

Reliability and consistent high quality

• ACS580 drives are designed for customers who value high quality and robustness in their applications
• The product features such as coated boards and compact IP55 enclosure — make the ACS580 suitable for harsh conditions also
• Additionally all ACS580 drives are tested at maximum temperature and with nominal loads
• The tests include performance and all protective functions

Easier than ever before

• ACS580 drives have all the essential features built-in reducing the commissioning and set-up time
• The assistant control panel with multiple language choices is standard in ACS580 drives
• Users can also upgrade to an optional Bluetooth control panel for wireless commissioning and monitoring
• Primary settings and application control macros ensure quick product setup
