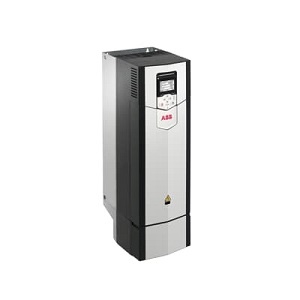

ABB ACS880-01-170A-2+D150 AC Drive 45kW ACS88001170A2D150

• Extended Product Type: AC Drives
• Product ID: ACS880-01-170A-2+D150
• Item Code: 3AUA0000143822
• ABB Type Designation: AC Drives

Description of ABB ACS880-01-170A-2+D150 AC Drive 45kW

ABB ACS880-01-170A-2+D150 Variable Speed/Frequency Drive (VSD/VFD) / Inverter with Assistant control panel + brake chopper – ATEX compliant – ABB (ACS880 series) – Rated input voltage 208Vac-240Vac (3-phase / 3P) – Rated current 170A (nom.; 230Vac) – Rated power 45kW (nom.; 230Vac) – IP21 / UL type 1 – Frame size R7 – with Modbus RTU / Modbus communication capability – Surface / wall mounting – with built-in Choke + Safe Torque Off (STO) + Direct Torque Control (DTC) – compatible with input voltages 208Vac-240Vac (220Vac / 230Vac) (3-phase / 3P) – item code #3AUA0000143822 – equivalent to ACS88001170A2D150

Specification of ABB ACS880-01-170A-2+D150 AC Drive 45kW 170A

• Primary brand: ABB
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: ACS880 series
• Sub-range name: Standard models
• Network frequency: 50-60 Hz
• Functions: Variable Speed/Frequency Drive (VSD/VFD) / Inverter, Safe Torque Off (STO), Direct Torque Control (DTC), PID control, Energy optimizer, Diagnostics
• Design: Assistant control panel, ATEX compliant, Choke
• Supply voltage (AC): 208Vac-240Vac, 208Vac-240Vac (220Vac / 230Vac)
• Type of network: 3-phase / 3P
• Rated current: 170A (nom.; 230Vac), 162A (LD Light Overload; 230Vac), 145A (HD Heavy-Duty; 230Vac), 247A (maximum; 230Vac)
• Rated active power (kW): 45kW (nom.; 230Vac), 45kW (LD Light Overload; 230Vac), 37kW (HD Heavy-Duty; 230Vac)
• Protection functions: Safe Torque Off (STO), Stop emergency, Brake control, Limited/ Maximum speed of the motor, Prevention of Unexpected Start-up (POUS)
• Communication protocol: Modbus RTU, Modbus
• Mounting mode: Surface / wall
• Digital inputs: 1 x digital input (24Vdc) (XDI-DI1 START/STOP)
  • 1 x digital input (24Vdc) (XDI-DI2 FWD/REV)
  • 1 x digital input (24Vdc) (XDI-DI3 RESET)
  • 1 x digital input (24Vdc) (XDI-DI4 Acceleration and deceleration select)
  • 1 x digital input (24Vdc) (XDI-DI5 constant speed selection)
  • 1 x digital input (24Vdc) (XDI-DI6)
  • 1 x digital input (24Vdc) (XD24-DIIL Digital interlock)
  • 1 x digital input (24Vdc; can also be used as a digital output) (DIO1 READY)
  • 1 x digital input (24Vdc; can be used as input or output) (DIO2 RUNNING)
  • 1 x digital input (must be closed for drive to start) (XSTO-IN1)
  • 1 x digital input (must be closed for drive to start) (XSTO-IN2)
• Digital outputs: 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO1 READY)
  • 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO2 RUNNING)
  • 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO3 FAULT)
• Analog inputs: 1 x analog input (0-10Vdc / 2-10Vdc) (XAI-AI1 Speed reference)
  • 1 x analog input (0-20mA / 4-20mA) (XAI-AI2)
• Analog outputs: 1 x analog output (0-20mA) (XAO-AO1 motor speed rpm)
  • 1 x analog output (0-20mA) (XAO-AO2 motor current)
• Degree of protection: IP21, UL type 1
• Dimensions: Frame size R7
• Ambient air temperature for operation: -15…+40 °C
• Ambient air temperature for storage: -40…+70 °C
• Power dissipation/losses: 940 W
• Application type: Machinery drives, mixers, centrifuges, conveyors, cranes requiring accurate speed and torque control
• Order code / Manufacturer SKU:
• Manufacturer product status: Commercialized
• Equivalent to: ACS88001170A2D150
• Compliant with standard(s): CE, IEC 60721-3-1 Class 1C2/1S2, IEC 60721-3-2 Class 2C2/2S2, IEC 60721-3-3 Class 3C2; 3S2, IEC 61508 SIL 3, IEC 61511 SIL 3, IEC 61800-5-2, EN/IEC 62061 SIL CL 3, EN ISO 13849-1 PL e, EN 61800-3, EN 61800-5-1, cUL, UL, CSA, EAC, RoHS, ABS, Bureau Veritas, CCS, DNV GL
  KR, Lloyd’s, NK, RINA, RMRS, TUV Nord, ATEX

Benefits

• The ACS880-01 comes in one compact package for easy installation and commissioning
• The drive supports wall-mounting as standard and cabinet mounting as an option
• The drive offering includes enclosure classes up to IP55 making it suitable for most environments and installations
• ACS880-01 drives have all the essential features built-in
• These features include as standard a choke for harmonic filtering as well as options like a brake chopper / EMC filter and communication protocol adapter / functional safety and I/O extension modules
• The extensive range of options also includes external output filters and brake resistors
• The ACS880-01 is also available with marine type approval from various key classification bodies
