Description

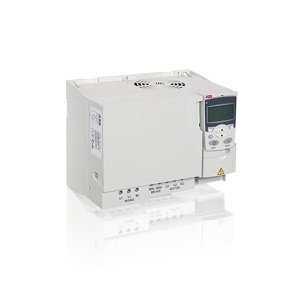

ABB ACS355-03U-31A0-2+J400+N827 Drive ACS35503U31A02J400N827

• Extended Product Type: AC Drives
• Product ID: ACS355-03U-31A0-2+J400+N827
• Item code: 3AUA0000176235
• ABB Type Designation: AC Drives

Description of ABB ACS355-03U-31A0-2+J400+N827 Drive

ABB ACS355-03U-31A0-2+J400+N827 Variable Speed/Frequency Drive (VSD/VFD) / Inverter for solar pumping stations with Assistant control panel + brake chopper – ABB (ACS355 series) – Rated input voltage 200Vac-240Vac (3-phase / 3P) – Rated current 31A (I2N; 200-240Vac) – Rated power 7.5kW (nom.; 200-240Vac) / 10HP (nom.; 200-240Vac) – IP20 – Frame size R4 – Surface / wall mounting – with built-in MPPT (the most power output possible) + Flow measurement + Built-in sensorless flow calculation – compatible with input voltages 200Vac-240Vac (208Vac / 220Vac / 230Vac) (3-phase / 3P) – item code #3AUA0000176235 – equivalent to ACS35503U31A02J400N827

Specification of ABB ACS355-03U-31A0-2+J400+N827 AC Drive

• Manufacturer: ABB
• Drive Series: ACS355
• Input Range VAC: 200 to 240 Volts AC
• Input Phase: 3
• HP: 7.5 Horsepower
• Amps: 31 Amps
• Max. Frequency: 600 Hertz
• Operator Controls: Keypad Included
• Mounting: Panel
