Description

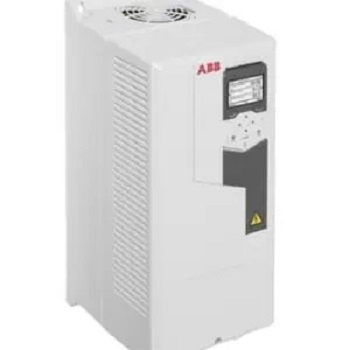

ABB ACS580-01-05A7-4+J400 Drive 3HP ACS5800105A74J400

• Extended Product Type: Inverter
• Product ID: ACS580-01-05A7-4+J400
• ABB Type Designation: Inverter
• Product ID: 3AXD50000038940+J400
• ABB Type Designation: ACS580-01-05A7-4+J400
• EAN: 6438177457909

Description of ABB ACS580-01-05A7-4+J400 AC Drive

ABB ACS580-01-05A7-4+J400 PN: 2.2 kW, IN: 5.6 A. ABB ACS580 series AC Inverter for 2.2kW (3HP) 400V 3 Ph motor to 5.6A at high overload or 3kW (4HP) to 6.8A when Fan/Pump rated. Operates in VxF, Sensorless Vector or Full Closed-loop Flux Vector (when an optional Encoder Feedback card is fitted). Converts fixed frequency Three Phase 400V input to variable frequency 400V to control the speed of a standard AC induction motor.

Specification of ABB ACS580-01-05A7-4+J400 AC Drive 3HP 2.2kw

• Primary brand: ABB
• Overload: 150% x 60 seconds every 10 minutes (High Overload)
• Overload: 110% x 60 seconds every 10 minutes (Fan/Pump rated)
• Speed Control Range: 0-500Hz.
• Braking: To 52 Ohm minimum, 191 Ohm maximum external resistor to 2.9kW (not supplied)
• Operator Keypad (Assistant Control Panel)
• 2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Contact Sets, terminals for RS-485/Modbus RTU communications, terminals for dual channel SIL3 safe torque off (STO), 24V AC/DC input to power the control unit when the main supply is disconnected.
• Input Current: [as output current]
• Input Voltage: 380-480V Three Phase +10% -15% at 50-60Hz ±5%
• EMC Compliance: IEC EN61800-3:2004 + A1:2012 Category C2 (Industrial or restricted Domestic)
