Description

ABB ACS880-37-1110A-5+B055+C129+H359 Drive ACS880371110A5B055C129H359

• Extended Product Type: AC Drives
• Product ID: ACS880-37-1110A-5+B055+C129+H359
• Item code: #3AUA0000185697
• ABB Type Designation: AC Drives

Description of ABB ACS880-37-1110A-5+B055+C129+H359

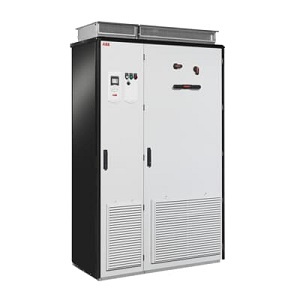

ABB ACS880-37-1110A-5+B055+C129+H359 Enclosed Ultra-low-harmonic Variable Speed/Frequency Drive (VSD/VFD) / Inverter with Assistant control panel + IP54 / UL type 12 + UL/cUL certification + brake chopper – ATEX compliant – with option +H359 – ABB (ACS880 series) – Rated input voltage 380Vac-500Vac (3-phase / 3P) – Rated current 1110A (nom.; 500Vac) – Rated power 800kW (nom.; 500Vac) – IP54 / UL type 12 – with Modbus RTU / Modbus communication capability – Floor freestanding mounting – with built-in Choke + common mtr. term. cubicle + Safe Torque Off (STO) + Direct Torque Control (DTC) – compatible with input voltages 380Vac-500Vac (400Vac / 415Vac / 440Vac / 480Vac) (3-phase / 3P) – item code #3AUA0000185697 – equivalent to ACS880371110A5B055C129H359

Specification of ABB ACS880-37-1110A-5+B055+C129+H359 Drive 800kW 1110A

• Primary brand: ABB
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: ACS880 series
• Sub-range name: Standard models
• Network frequency: 50-60 Hz
• Functions: Variable Speed/Frequency Drive (VSD/VFD) / Inverter, Safe Torque Off (STO), Direct Torque Control (DTC), PID control, Energy optimizer, Diagnostics
• Design: Assistant control panel, ATEX compliant, Choke
• Supply voltage (AC): 380Vac-500Vac, 380Vac-500Vac (400Vac / 415Vac / 440Vac / 480Vac)
• Type of network: 3-phase / 3P
• Rated current: 1110A (nom.; 500Vac), 1066A (LD Light Overload; 500Vac), 830A (HD Heavy-Duty; 500Vac), 1450A (maximum; 500Vac)
• Rated active power (kW): 800kW (nom.; 500Vac), 710kW (LD Light Overload; 500Vac), 560kW (HD Heavy-Duty; 500Vac)
• Protection functions: Safe Torque Off (STO), Stop emergency, Brake control, Limited/ Maximum speed of the motor, Prevention of Unexpected Start-up (POUS)
• Communication protocol: Modbus RTU, Modbus
• Mounting mode: Surface / wall
• Digital inputs: 1 x digital input (24Vdc) (XDI-DI1 START/STOP)
  • 1 x digital input (24Vdc) (XDI-DI2 FWD/REV)
  • 1 x digital input (24Vdc) (XDI-DI3 RESET)
  • 1 x digital input (24Vdc) (XDI-DI4 Acceleration and deceleration select)
  • 1 x digital input (24Vdc) (XDI-DI5 constant speed selection)
  • 1 x digital input (24Vdc) (XDI-DI6)
  • 1 x digital input (24Vdc) (XD24-DIIL Digital interlock)
  • 1 x digital input (24Vdc; can also be used as a digital output) (DIO1 READY)
  • 1 x digital input (24Vdc; can be used as input or output) (DIO2 RUNNING)
  • 1 x digital input (must be closed for drive to start) (XSTO-IN1)
  • 1 x digital input (must be closed for drive to start) (XSTO-IN2)
• Digital outputs: 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO1 READY)
  • 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO2 RUNNING)
  • 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO3 FAULT)
• Analog inputs: 1 x analog input (0-10Vdc / 2-10Vdc) (XAI-AI1 Speed reference)
  • 1 x analog input (0-20mA / 4-20mA) (XAI-AI2)
• Analog outputs: 1 x analog output (0-20mA) (XAO-AO1 motor speed rpm)
  • 1 x analog output (0-20mA) (XAO-AO2 motor current)
• Dimensions:
• Ambient air temperature for operation: -15…+40 °C
• Ambient air temperature for storage: -40…+70 °C
• Power dissipation/losses: 32000 W
• Application type: Machinery drives, mixers, centrifuges, conveyors, cranes requiring accurate speed and torque control
• Order code / Manufacturer SKU: #3AUA0000185697
• Manufacturer product status: Commercialized
• Equivalent to: ACS880371110A5B055C129H359
• Compliant with standard(s): CE, IEC 60721-3-1 Class 1C2/1S2, IEC 60721-3-2 Class 2C2/2S2, IEC 60721-3-3 Class 3C2; 3S2, IEC 61508 SIL 3, IEC 61511 SIL 3, IEC 61800-5-2, EN/IEC 62061 SIL CL 3, EN ISO 13849-1 PL e, EN 61800-3, EN 61800-5-1, cUL, UL, CSA, EAC, RoHS, ABS, Bureau Veritas, CCS, DNV GL
  KR, Lloyd’s, NK, RINA, RMRS, TUV Nord, ATEX

Benefits

• The ACS880-07 offers a wide variety of standardized configurations for different application requirements from line contactors to preventing unexpected motor starts
• If the application requires more — ABB’s Order-Based Engineering services can add special features to the standard product such as an additional cabinet for customer-specific devices
• Drives up to frame size R11 are based on a compact single module including rectifier and inverter
• Larger drives consist of separate rectifier and inverter modules providing redundancy with parallel connected units
• If one module needs to be disconnected the drive can continue running at reduced power
• The robust design and enclosures up to IP54 make the ACS880-07 suitable for even very harsh environments
