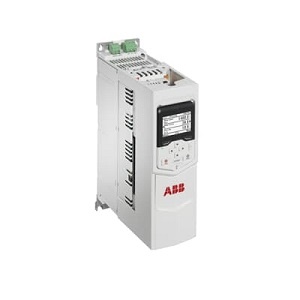

ABB ACS880-M04-030A-2+E200 Drive 7.5kW ACS880M04030A2E200

• Extended Product Type: AC Drives
• Product ID: ACS880-M04-030A-2+E200

• Item code: #3AUA0000209541
• ABB Type Designation: AC Drives

Description of ABB ACS880-M04-030A-2+E200 Drive 7.5kW

ABB ACS880-M04-030A-2+E200 Variable Speed/Frequency Drive (VSD/VFD) / Inverter with EMC filter 2nd environment (C3; TN network) + Assistant control panel + brake chopper – ABB (ACS880 series) – Rated input voltage 200Vac-240Vac (3-phase / 3P) – Rated current 30A (nom.; 230Vac) – Rated power 7.5kW (nom.; 230Vac) / 10HP (nom.; 230Vac) – IP20 – Frame size R3 – with Modbus RTU / Modbus communication capability – Surface / wall mounting – with built-in Choke + Safe Torque Off (STO) – compatible with input voltages 200Vac-240Vac (208Vac / 220Vac / 230Vac) (3-phase / 3P) – item code #3AUA0000209541 – equivalent to ACS880M04030A2E200

Specification of ABB ACS880-M04-030A-2+E200 Drive 7.5kW 10HP 30A

• Primary brand: ABB
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: ACS880 series
• Sub-range name: Standard models
• Network frequency: 50-60 Hz
• Functions: Variable Speed/Frequency Drive (VSD/VFD) / Inverter, Safe Torque Off (STO), Direct Torque Control (DTC), PID control, Energy optimizer, Diagnostics
• Design: Assistant control panel, ATEX compliant, Choke
• Supply voltage (AC): 200Vac-240Vac, 200Vac-240Vac (208Vac / 220Vac / 230Vac)
• Type of network: 3-phase / 3P
• Rated current: 30A (nom.; 230Vac), 28A (LD Light Overload; 200Vac), 24A (HD Heavy-Duty; 200Vac)
  36A maximum
• Rated active power (kW): 7.5kW (nom.; 230Vac), 7.5kW (LD Light Overload; 200Vac), 5.5kW (HD Heavy-Duty; 200Vac)
• Rated power (HP): 10HP (nom.; 230Vac)
• Protection functions: Safe Torque Off (STO), Stop emergency, Brake control, Limited/ Maximum speed of the motor, Prevention of Unexpected Start-up (POUS)
• Communication protocol: Modbus RTU, Modbus
• Mounting mode: Surface / wall
• Digital inputs: 1 x digital input (24Vdc) (XDI-DI1 START/STOP)
  • 1 x digital input (24Vdc) (XDI-DI2 FWD/REV)
  • 1 x digital input (24Vdc) (XDI-DI3 RESET)
  • 1 x digital input (24Vdc) (XDI-DI4 Acceleration and deceleration select)
  • 1 x digital input (24Vdc) (XDI-DI5 constant speed selection)
  • 1 x digital input (24Vdc) (XDI-DI6)
  • 1 x digital input (24Vdc) (XD24-DIIL Digital interlock)
  • 1 x digital input (24Vdc; can also be used as a digital output) (DIO1 READY)
  • 1 x digital input (24Vdc; can be used as input or output) (DIO2 RUNNING)
  • 1 x digital input (must be closed for drive to start) (XSTO-IN1)
  • 1 x digital input (must be closed for drive to start) (XSTO-IN2)
• Digital outputs: 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO1 READY)
  • 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO2 RUNNING)
  • 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO3 FAULT)
• Analog inputs: 1 x analog input (0-10Vdc / 2-10Vdc) (XAI-AI1 Speed reference)
  • 1 x analog input (0-20mA / 4-20mA) (XAI-AI2)
• Analog output: s1 x analog output (0-20mA) (XAO-AO1 motor speed rpm)
  • 1 x analog output (0-20mA) (XAO-AO2 motor current)
• Degree of protection: IP20
• Dimensions: Frame size R3
• Ambient air temperature for operation: -10…+55 °C
• Ambient air temperature for storage: -40…+70 °C
• Application type: Machinery drives, mixers, centrifuges, conveyors, cranes, requiring accurate speed and torque control
• Order code / Manufacturer SKU: #3AUA0000209541
• Manufacturer product status: Commercialized
• Equivalent to: ACS880M04030A2E200
•  Compliant with standard(s): CE, IEC 60721-3-1 Class 1C2/1S2, IEC 60721-3-2 Class 2C2/2S2, IEC 60721-3-3 Class 3C2; 3S2, EN 61800-3, EN 61800-5-1, EN 61800-5-2, UL, CSA

Benefits

• Built on ABB’s common drives architecture — the ACS880 machinery drive module is a versatile and high-level drive that is easy to adapt to demanding machine building needs
• With enclosure class IP20 as standard and designed to control virtually any type of motor accurately and dependably in a power and voltage range from 0.37kW to 45kW and 230V to 500V
• The voltage range can be extended utilizing ABB’s industrial drives
• ACS880 machinery drives fit optimally inside cabinets used in various industries including food and beverage / material handling and material forming
• ABB’s premium motor control technology direct torque control (DTC) is built-in as standard for precise control of applications such as winders / wire drawing / mixers / cranes / sorting conveyors and other high-performance applications within machine building

• The ACS880 machinery drive comes in four different frame sizes (R1 to R4) with three option slots for adaptable installation and commissioning
• The ACS880 machinery drive offers IEC 61131-3 programming capabilities for flexible control logic design and integration into automation systems
• The drive offers integrated safety functionality with safe torque off (STO) built-in as standard and the optional plug-in safety functions module (FSO-12/-21) for enhanced application safety

• The drive can be quickly and reliably connected to a safety PLC through PROFI safe over PROFINET
• Other options include applications control programs for winder / cranes and high speed applications
• The drive also supports a wide range of fieldbus protocols / EMC filters / encoder and resolver interfaces / chokes and brake resistors
• The drive is equipped with general motion features which enable synchronized positioning tasks
• The ACS880 machinery drive comes with energy efficiency calculators and the Drive composer PC tool for easy commissioning and configuration
• Other compatible tools for adaptable performance include the Automation Builder / Drive Customizer and the Functional safety design tool (FSDT-01)
