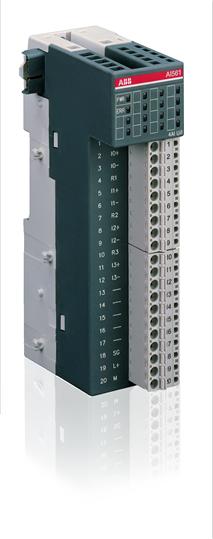

ABB 1TNE968902R1101 Analog Input Module AI561

Description of ABB 1TNE968902R1101 Analog Input Module

ABB 1TNE968902R1101 AI561:S500,Analog Input Mod.4AI,U/I 12bit+sign,24VDC,2-wire

Environmental of ABB 1TNE968902R1101 Analog Input Module

• Ambient Air Temperature: Operation 0 … +60 °C Storage -40 … +70 °C

• Maximum Operating Altitude Permissible: 2000 m

• RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment

• Analog Inputs: 4 channels, 0 … 20mA, 4 … 20mA, 0 … +5V, 0 … +10V, -2.5 … +2.5V, -5V … +5V, usable as digital input, 12bit + sign
• Degree of Protection: IP20
• I/O Option: eCo-IO module with Onboard IO – 4AI
• Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
• Mounting Position: Horizontal, Vertical possible with derating
• Mounting Type: DIN rail and panel mounting
• Number of Analog Configurable I/Os: 4
• Order Multiple: 1 piece
• Primary Voltage: 24 V
• Product Main Type: AI561
• Product Name: Distributed Automation I/Os
• Product Type: PLC-AC500-eCo
• Programming Software: AC500 Control Builder PS501-PROG
• RoHS Date: 0239

The AC500-eCo from ABB is a range of uniquely scalable PLCs offering you unrivalled cost effectiveness for modern
industrial automation applications where small-scale PLC solutions often represent the ideal solution.

Based on the successful AC500 range, these extremely compact entry-level PLCs offer the most flexible and economical configuration available, low cost and straightforward servicing and all of the requirements of a modern control system for small applications – without compromising on the power and support you have come to expect from ABB.

Easy to use ABB 1TNE968902R1101 Analog Input Module

The AC500-eCo integrates perfectly into the AC500 family. The common programming system across the entire AC500 range will save you time, as the CoDeSys programming environment is custom made for easy integrated network configuration. In addition, the user program can be downloaded via an SD card without the need for programming tools.

Economical

We integrated multiple functions into single I/Os to allow for individual customer solutions.

Scalable flexibility

The AC500-eCo is fully compatible with the entire AC500 PLC family. This provides you with the option to build customized solutions based on the complete S500 and S500-eCo I/O range.

Versatile

The AC500-eCo offers multiple types of input and output signals together with AC500 libraries and function blocks for the most diverse specific customer requirements.

Your advantages at a glance:

– Extremely easy to use
– Economical, cost-effective concept
– Unrivalled scalability and flexibility
– Optimal versatility
