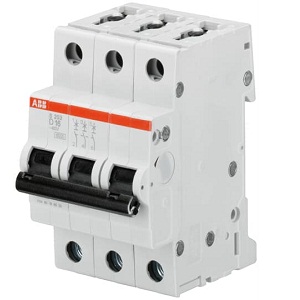

ABB Circuit Breaker S203-D25

Description

ABB Circuit Breaker S203-D25

• Extended Product Type : Circuit Breaker

• Product ID : S203-D25

• ABB Type Designation : Circuit Breaker

Description

• System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 (for this code purchased in South America there is no UL certificate), allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Specification of ABB S203-D25

• Number of Poles : 3
• Tripping Characteristic : D
• Rated Current : 25 A
• Power Loss : 9.3 W
• Operational Voltage :  440 V AC
• Terminal Type : Screw Terminals
• Product Net Weight : 0.375 kg
