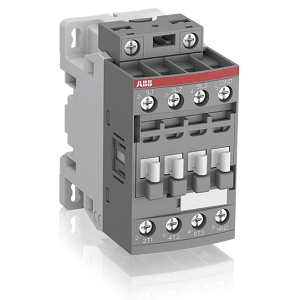

ABB Contactor AF16-30-10 100-250VAC/DC

Description

ABB Contactor AF16-30-10 100-250VAC/DC

• Extended Product Type : Contactor

• Product ID : AF16-30-10 100-250VAC/DC

• ABB Type Designation : Contactor

Description

• AF16 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF… contactors include an electronic coil interface accepting a wide control voltage Uc min. … Uc max. Only four coils cover control voltages between 24…500 V 50/60 Hz or 20…500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF… series 1-stack 3-pole contactors are of the block type design. – Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) – Control circuit: AC or DC operated – Accessories: a wide range of accessories is available

Specification

• Number of Main Contacts NO : 3
• Rated Operational Voltage : Auxiliary Circuit 690 V, Main Circuit 690 V
• Rated Frequency (f) : Auxiliary Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz
• Rated Control Circuit Voltage : 50 Hz 100 … 250 V, 60 Hz 100 … 250 V, DC Operation 100 … 250 V
• Product Net Weight : 0.27 kg
