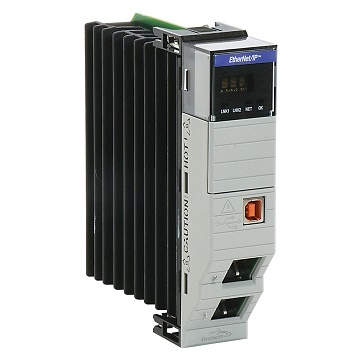

Allen-Bradley 1756-EN2TR Ethernet Communication Module 1756EN2TR

• Extended Product  Type: PLC
• Product ID: 1756-EN2TR
• Allen-Bradley Type Designation: PLC

Description of Allen-Bradley 1756-EN2TR Ethernet Module

Allen-Bradley 1756-EN2TR communication module that support Ethernet I/P communication protocol. This module has Two (2) RJ45 port for connecting or implementing Redundant Ethernet network. It also has a USB 1.1 port. This Ethernet modules supports 10/100 Mbps transmission speed.

Specification of Allen-Bradley 1756-EN2TR Ethernet Communication Module

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Part Number/Catalog No.: 1756-EN2TR
• Module Type: Ethernet Communication Module
• Series: ControlLogix
• Backplane Current (5Volts): 1 amp
• Ethernet-IP Communication Rate: 10/100 Mbps
• Backplane Current (24 Volts): 3 milliamps
• Integrated Ports: Two (2) RJ45; One (1) USB 1.1
• Power Consumption: 5.1 Watts
• Current Draw: 1.2 Amp
• Insulation Voltage: 30 Volts Continuous
• Location Chassis: (any slot)
• Slot Width: 1
• Enclosure: Open
• Operating Temperature: 32 to 140 degrees Fahrenheit (0 to 60 degrees Celsius)
• Power Dissipation: 5.1 W
• Current Rating: 1.2 Amps
• Thermal Dissipation: 21.28 BTU per hour
• Communication: Ethernet/IP
• UPC: 10612598547736
