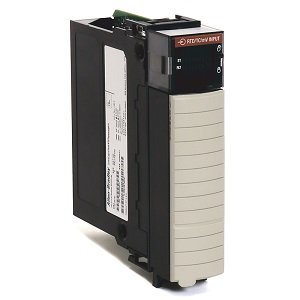

Allen Bradley 1756-IRT8I Analog RTD Input Module 1756IRT8I

• Extended Product Type: PLC
• Product ID: 1756-IRT8I
• Allen-Bradley Type Designation: PLC

Description of Allen Bradley 1756-IRT8I RTD Input Module

The 1756-IRT8I is a ControlLogix analog input module. It has Eight (8) individually isolated channels compatible for Resistance Temperature Detector (RTD) and Thermocouple sensors. Compatible RTDs are 100, 200, 500, 1000 ? Platinum, alpha=385; 100, 200, 500, 1000 ? Platinum, alpha=3916; 120 ? Nickel, alpha=672; 100, 120, 200, 500 ? Nickel, alpha=618; and 10 ? Copper. Compatible Thermocouples are Type B, C, D, E, J, K, N, R, S, T, TXK/XK (L). It is also capable of receiving millivolt signals with range of -100…100 mV.

Specification of Allen Bradley 1756-IRT8I Analog RTD Input Module

• Series: ControlLogix
• Module Type: Analog RTD / Thermocouple / milivolt Module
• Inputs: 8 Isolated Channels
• No. of Inputs: Eight (8) Point Isolated RTD / Thermocouple / milivolt
• Power Dissipation (Max): 4.6 W
