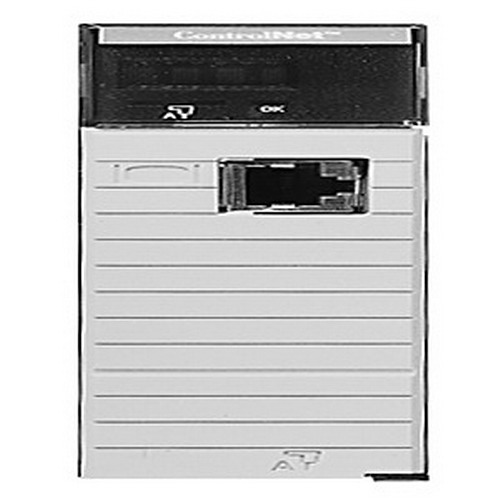

allen-bradley 1756CNBR controlnet bridge module
The ControlNet network is an open, control network for real-time, high-throughput applications. The ControlNet network uses the Common Industrial Protocol (CIP) to combine the functionality of an I/O network and a peer-to-peer network providing high-speed performance for both functions. The ControlNet network gives you deterministic, repeatable transfers of all mission-critical control data in addition to supporting transfers of non-time-critical data. I/O updates and controller-to-controller interlocking always take precedence over program uploads and downloads and messaging.
- Standards: C/US UL listed, CSA certified, CE-ATEX, CE-EMC, C-TICK, FM-US_HAZ, GOST_R, KCC certified, MARINE-ABS, MARINE-BVS, MARINE-DNV, MARINE-GL, MARINE-KRS, MARINE-LR, ROSTECHNADZOR, TUV-FS
- Applications: ControlNet
Description
Model Number
1756CNBR
Allen-Bradley
Additional Information
ControlLogix® Communication Module, Type: Redundant, Number Of Channels: 2, Current Rating: Drawn: 970 MA At 5.1 VDC, 1.7 MA At 24 VDC, Isolation: 30 V (Continuous), Basic Insulation Type, ControlNet A/B To Backplane, And ControlNet A To Controlnet B, No Isolation Between NAP Or USB And Backplane, Type Tested At 500 VAC For 60 SEC, Enclosure: Open Type, Rfi Suppression: Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ, 10 V/M With 200 HZ 50% Pulse 100% AM At 900 MHZ, 10 V/M With 200 HZ 50% Pulse 100% AM At 1890 MHZ, 3 V/M With 1 KHZ Sine-Wave 80% AM From 2000 – 2700 MHZ, Conducted: 10 VRMS With 1 KHZ Sine-Wave 80% AM From 150 KHZ – 80 MHZ, Display: Digital, Connection Cables: 1786-RG6 Quad Shield RG6 Coaxial Cable, Communication: ControlNet BNC, 5 MBPS, Mounting: Chassis, Temperature Rating: 32 – 140 DEG F, Environmental Conditions: Relative Humidity: 5 – 95% Non-Condensing, Vibration: 2 G At 10 – 500 HZ (Operating), Shock: 30 G (Operating), 50 G (Non-Operating), Power Dissipation: 5.1 W, Surge Transient Immunity: Plus/Minus 2 KV Line-Earth (CM) On Controlnet Ports, Slot Width: 1, Standard/Approvals: C/US UL listed, CSA certified, CE-ATEX, CE-EMC, C-TICK, FM-US_HAZ, GOST_R, KCC certified, MARINE-ABS, MARINE-BVS, MARINE-DNV, MARINE-GL, MARINE-KRS, MARINE-LR, ROSTECHNADZOR, TUV-FS, Application: ControlNet
SPECIFICATIONS :
Item Name: Communication Module
Type: Redundant
Sub Brand: ControlLogix®
Number Of Channels: 2
Current Rating: Drawn: 970 MA At 5.1 VDC, 1.7 MA At 24 VDC
Isolation: 30 V (Continuous), Basic Insulation Type, ControlNet A/B To Backplane, And ControlNet A To Controlnet B, No Isolation Between NAP Or USB And Backplane, Type Tested At 500 VAC For 60 SEC
Enclosure: Open Type
Rfi Suppression: Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ, 10 V/M With 200 HZ 50% Pulse 100% AM At 900 MHZ, 10 V/M With 200 HZ 50% Pulse 100% AM At 1890 MHZ, 3 V/M With 1 KHZ Sine-Wave 80% AM From 2000 – 2700 MHZ, Conducted: 10 VRMS With 1 KHZ Sine-Wave 80% AM From 150 KHZ – 80 MHZ
Display: Digital
Connection Cables: 1786-RG6 Quad Shield RG6 Coaxial Cable
Communication: ControlNet BNC, 5 MBPS
Mounting: Chassis
Temperature Rating: 32 – 140 DEG F
Environmental Conditions: Relative Humidity: 5 – 95% Non-Condensing, Vibration: 2 G At 10 – 500 HZ (Operating), Shock: 30 G (Operating), 50 G (Non-Operating)
Power Dissipation: 5.1 W
Surge Transient Immunity: Plus/Minus 2 KV Line-Earth (CM) On Controlnet Ports
Slot Width: 1
