Description

Allen-Bradley 1762-IQ8OW6

• Extended Product Type : PLC

• Product ID  : 1762-IQ8OW6

• Allen-Bradley Type Designation : PLC

Description

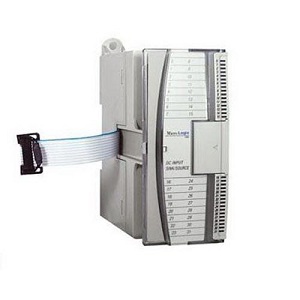

• The Allen-Bradley 1762-IQ8OW6 is a MicroLogix 1200 combination I/O module. This module features Eight (8) sink / source input channels that accepts 10…30V DC @ 30 °C (86 °F) and 10…26.4V DC @ 65 °C (149 °F) input voltage range. It also has Six (6) Form A relay output channels with operating voltage range of 5-265VAC and 5-125V DC. This module is compatible for use with MicroLogix 1100, 1200, and1400

Specification of Allen-Bradley 1762-IQ8OW6

• Series : MicroLogix
• Module Type : Combination I/O module
• No. of Inputs : Eight (8) inputs
• No. of groups : Two (2) input groups
• Channels per group : Four (4) channels
• Nominal input voltage : 24VDC
• Input voltage range : 10-30 VDC
• No. of outputs : Six (6) relay outputs
• Output operating voltage : 5…265V AC; 5…125V DC
• Input Power : 24V DC
• Operating Voltage Range : 10-30V DC
