Description

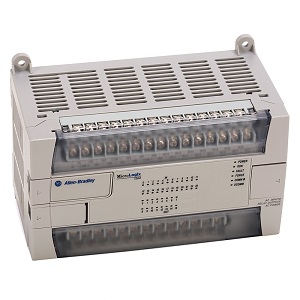

Allen Bradley 1762-L40BWA Input Controller Module 1762L40BWA

• Extended Product Type: PLC
• Product ID: 1762-L40BWA
• Allen-Bradley Type Designation: PLC

Description of Allen Bradley 1762-L40BWA Input Module

The1762-L40BWA is an Allen-Bradley 40-point controller module. This MicroLogix 1200 unit has Twenty-Four (24) inputs compatible for 24 Volts DC input voltage and supports sinking or sourcing wiring configuration. It also has Sixteen (16) Relay output. This controller supports DIN Rail or Panel Mounting and programmed using RSLogix 500 Programming software.

Specification of Allen Bradley 1762-L40BWA Input Controller Module

• Series: MicroLogix 1200
• Input Power: 120 to 240 Volts AC
• Inputs: (20) 24 Volts DC and (4) Fast 24 Volts DC
• Outputs: (16) Relay
• No. of Inputs: Twenty-Four (24)
• No. of Outputs: Sixteen(16)
• Input Circuit Type: 24 Volts DC Sink/Source
• Relay Contact Rating: 24-125VDC; 120-240VAC
• Dimensions: Height: 90 mm 104 mm (with DIN latch open); Width: 160 mm; Depth: 87 mm
• Load Current: 10A, minimum
