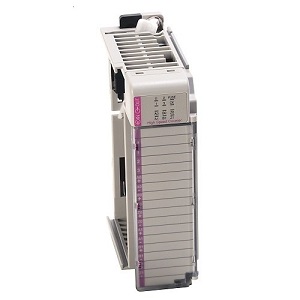

Allen-Bradley 1769-IF4 Analog Input Module 1769IF4

• Extended Product Type: PLC
• Product ID: 1769-IF4
• Allen-Bradley Type Designation: PLC

Description of Allen-Bradley 1769-IF4 Analog Input Module

The Allen-Bradley/Rockwell Automation 1769-IF4 module is a CompactLogix series analog module. It is an input module that needs Belden or equivalent cables for wiring. The 1769-IF4 analog input module can support differential inputs, single-ended sensor and transmitter inputs, and mixed transmitter inputs. This input module is powered by an external power supply with a voltage range of 20.4 to 26.4 Volts DC and a current rating of 60 milliamps minimum. The 1769-IF4 analog input module can be configured with I/O memory mapping.

Specification of Allen-Bradley 1769-IF4 Analog Input Module

• Series: CompactLogix
• Module Type: 4 Channel Analog Input Module
• Input Type: Analog Inpu
• Communication Cable: 4 Point
• No. of Inputs: 4 Differential and Single Ended Inputs
• Input current range; 0-21 mA
• Current signal normal ranges: 0-20mA; 4-20 mA
• Input voltage range: 0-10.5VDC
• Backplane Current: 1.4 Amps at 24 Volts
• Power Consumption: 33.6 Watts
