Description

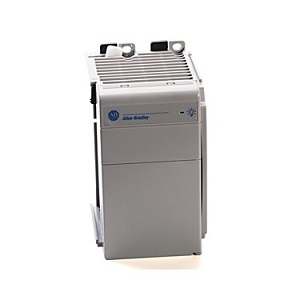

Allen-Bradley 1769-PB2

• Extended Product Type : PLC

• Product ID  : 1769-PB2

• Allen-Bradley Type Designation : PLC

Description

• The Allen-Bradley 1769-PB2 is a CompactLogix I/O Power Supply. This Power Supply has an input voltage range of 19.2-31.2V DC with Current capacity of 2.0 A @ 5VDC and 0.8A @ 24VDC. This power supply module is able to energize up to Sixteen (16) CompactLogix modules.

Specification of Allen-Bradley 1769-PB2

• Series : CompactLogix
• Module Type : DC Power Supply Module
• Input Voltage range : 19.2-31.2 VDC
• Power consumption : 7.5 W @ 60 °C (140 °F)
• Inrush current, max : 30 A @ 31.2V DC
• Fuse type : Littelfuse 02153.15MXP; Wickmann 19195-3.15A
• Input Power : 24VDC
• Weight : 485 g (1.07 lb)
