Description

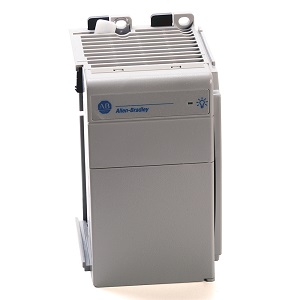

Allen-Bradley 1769-PB4

• Extended Product Type : PLC

• Product ID  : 1769-PB4

• Allen-Bradley Type Designation : PLC

Description

• The Allen-Bradley 1769-PB4 is a Compact I/O power supply. This power supply module is externally powered by an input Voltage range of 19.2.-31.2VDC with nominal input voltage of 24VDC. It has capacity of 4A at 5VDC and 2A at 24VDC. 8 I/O modules can be connected on either side of the power supply for a maximum of 16 modules.

Specification of Allen-Bradley 1769-PB4

• Series : CompactLogix
• Module Type : Power Supply
• Nom Input Voltage : 24VDC
• Input Voltage Range : 19.2-31.2VDC
• Power consumption : 100 VA @ 24V DC
• Fuse Type : Wickmann 19193-6.3A Littelfuse 021706.3MXP
• Mounting : Panel or DIN Rail
• Dimensions : 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.)
• Weight : 630 g (1.39 lb)
