Allen-Bradley 2094-AC05-M01 AC Drive
- Extended Product Type: AC Drive
- Product ID: 2094-AC05-M01
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 2094-AC05-M01 AC Drive
The 2094-AC05-M01 Integrated Axis Module belongs to the Kinetix 6000 series. It has an intermittent output current-to-bus of 10 A as well as an intermittent current-to-bus of 20 A. Its bus overvoltage is 425 Volts DC and it has a bus undervoltage of 425 Volts DC.
Specifications of Allen-Bradley 2094-AC05-M01 AC Drive
- Brand : Allen Bradley
- Series : Kinetix 6000
- Module Type : Axis Module
- Efficiency : 0.95
- Continuous Current (rms) : 6.0 Amps
- Continuous Current (0-peak) : 8.5 Amps
- Line Loss Ride Through : 20 milliseconds
- AC input voltage : 195 to 264 Volts AC
- Internal Shunt Continuous Power : N/A
- Internal Shunt Peak Power : N/A
- Bus Overvoltage : 425 Volts DC
- Shunt On : N/A

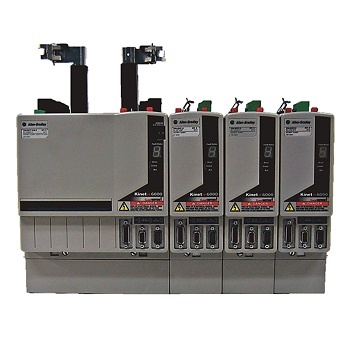

The 2094-AC05-M01 is a Kinetix 6000 modular servo drive module that is manufactured and designed by Allen-Bradley. This Integrated Axis Module (IAM) is always mounted as the first module (to the left) in the Kinetix 6000 system rack. The 2094-AC05-M01 operates with a 230 Volts AC nominal voltage, but it will work with the input voltage anywhere between 195 and 164 Volts AC, at 3-phase operating power and 50 to 60 Hertz frequency. Alternatively, 325 Volts DC voltage (common bus follower) can be connected to input terminals. The control power AC input voltage on the unit is 230 Volts AC rated. The Allen-Bradley 2094-AC05-M01 has 3 kW of continuous power output to the bus and 10 Amps of continuous current output to bus. The weight of this product is approximated at 2.27 kilograms (5.0 pounds). The non-operating (storage) temperature range for the device is from -40 to 70 degrees Celsius, while the operating temperature range is from 0 to 50 degrees Celsius.
With an Ethernet interface factory-installed, the 2094-AC05-M01 servo drive module can connect to industrial networks and exchange data with up to 100 Mbps speed. Ethernet technology is a swift, multidiscipline network that enables communication between the drive and the ControlLogix 5000 series PLCs and Ethernet can be used to control, configure, and monitor motion and safety systems like the Kinetix 6000 system. When replacing the 2094-AC05-M01 module, the users must be especially careful and follow the manual. The manual explains how to loosen screws and tip the unit up at a 45-degree angle to remove it properly. When installing the replacement drive, the users must be extremely careful not to bend the pins under the weight of the module itself.
