Description

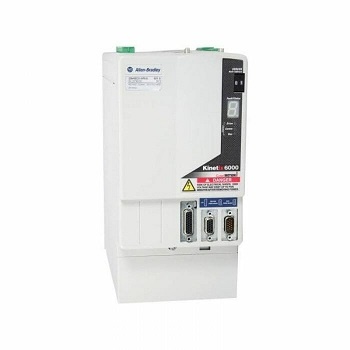

Allen-Bradley 2094-AC05-MP5 AC Drive
- Extended Product Type: AC Drive
- Product ID: 2094-AC05-MP5
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 2094-AC05-MP5 AC Drive
The 2094-AC05-MP5 has an AC input Voltage between 195 to 264 Volts RMS, 3-Phrase. It has a 500 Hertz velocity loop bandwidth and an RMS peak current of 7.4 A. The 2094-AC05-MP5 does not include an internal shunt resistor. It is rated with a 98% efficiency.
Specifications of Allen-Bradley 2094-AC05-MP5 AC Drive
- Brand : Allen Bradley
- Series : Kinetix 6000
- Module Type : Axis Module
- Efficiency : 0.98
- Continuous Current (rms) : 3.7 Amps
- Continuous Current (0-peak) : 5.2 Amps
- Line Loss Ride Through : 20 milliseconds
- AC input voltage : 195 to 264 Volts AC
- Internal Shunt Continuous Power : N/A
- Internal Shunt Peak Power : N/A
- Bus Overvoltage : 425 Volts DC
- Shunt On : N/A
The Allen-Bradley 2094-AC05-MP5 is a Kinetix 6000 multi-axis servo drive module rated at 3 kW and 5 Amps. This module is designated as an IAM (Integrated Axis Module) that has all the necessary power connections for a multi-axis system. The 2094-AC05-MP5 is a brushless servo motor drive module that has a compact housing. It is easy to use and extremely versatile. Characterized by a small footprint, this module saves space in the electrical cabinet. It has wide-ranging connectivity options regarding network and motor connections. It works with rotary servo motors and linear positioners which makes it a single, highly efficient solution for a wide variety of industrial automation applications. It is easily integrated with the Logix5000 family of PLC controllers and it supports the Ethernet network and the Serial Real-time Communications System (SERCOS).
The Allen-Bradley 2094-AC05-MP5 Integrated Axis Module has an advanced function known as safe speed monitoring. To supply this module with the power it needs, use 230 Volts AC 3-phase voltage or 325 Volts DC voltage. In both cases, the power source must have at least 10 Amps of current capacity. At the output side, the device generates 0 to 230 Volts AC to run the servo motors, and it can change the output frequency to anything within the range of 0 to 400 Hertz. Control inputs and outputs are 230 Volts AC rated. The module is CE certified to be used in the European market.
