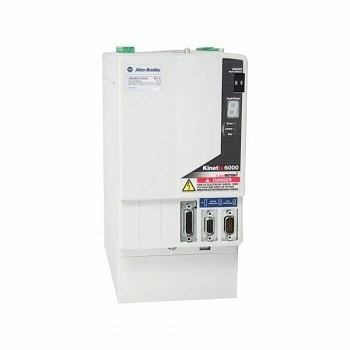

Allen-Bradley 2094-AC09-M02-S AC Drive

AVAILABILITY: Generally allow 7-10 days to ship



Description

Allen-Bradley 2094-AC09-M02-S AC Drive

  • Extended Product Type: AC Drive
  • Product ID: 2094-AC09-M02-S
  • Allen-Bradley Type Designation: AC Drive

Description of Allen-Bradley 2094-AC09-M02-S AC Drive

The 2094-AC09-M02-S is a Kinetix 6000 Integrated Axis Module (IAM). This module is a 230VAC, 3-Phase rated IAM with input frequency range of 47-63 Hz. This module has a Bus output voltage of 325 VDC with continuous output power to bus of 6.0 kW; Peak output power to bus of 12.0 kW and Continuous output current to bus of 19 A. It supports velocity loop bandwidth of 500 Hz and Current loop bandwidth of 1300 Hz and PWM frequency of 4 kHz. This IAM has an integrated Safe-Torque Off (STO) functionality.

Specifications of Allen-Bradley 2094-AC09-M02-S AC Drive

  • Brand : Allen Bradley
  • Series : Kinetix 6000
  • Module Type : IAM 200 Volt Class
  • AC Input Voltage : 195 to 264 Volts RMS
  • AC input voltage range : 195…264Vrms, 3-Phase
  • AC Input Frequency : 47 to 63 Hertz
  • AC input voltage, nominal : 230 VAC
  • AC Input Current (nom rms) : 19 Amperes
  • AC Input Current (Max Inrush 0-peak) : 37 Amperes
  • DC Input voltage : 275-375 VDC
  • DC Input Voltage (Common Bus Follower) : 275-375 Volts
  • Continuous power output to bus : 6.0 kW
  • DC Input Current (Common Bus Follower) : 19 Amperes
  • Internal Shunt (Continuous Power) : 50 Watts
  • Peak power output : 12.0 kW
  • Bus overvoltage : 415 V DC
  • Bus undervoltage : 138 V DC
  • Internal Shunt (Peak Power) : 8200 Watts
  • Internal Shunt Resistor :20 Ohms
  • Efficiency : 95%
  • Weight : 5.1 pounds (2.31 kilograms)

The Allen-Bradley 2094-AC09-M02-S is an Integrated Axis Module (IAM) from the Kinetix 6000 product family. This module is an essential part of implementing motion control as it hosts the major field connections such as Contactor enable (CED) connector, DC bus/AC input power (IPD) connector, Control power (CPD) connector, Motor power (MP) connector, Motor/resistive brake (BC) connector, I/O (IOD) connector.

Aside from the variety of connectors available to the module’s front panel, the 2094-AC09-M02-S SERCOS and DPI connectivity is mounted near the bottom of the module, covered by a removable access door. SERCOS connections available to this module are Sercos transmit (Tx) connector and Sercos receive (Rx) connector as well as a single DPI connector for connection of optional peripherals and modules.

The 2094-AC09-M02-S operates when supplied with an input supply voltage range of 195-264 VAC, 3-phase with nominal voltage of 230 VAC along an input frequency range pf 47-63 Hz while the control voltage of this module is designed for an input voltage of 95-264 VAC, 1-Phase with nominal values of 110VAC / 240 VAC. This module delivers an output voltage to the bus of 325 VDC with overvoltage detection when bus voltage reaches 415 VDC and undervoltage detection when bus voltage drops to 138 VDC. Additionally, it has a continuous output current to bus of 10 A and peak output current to bus of 20 A while the continuous output power is 6 kW and the peak output power is 12 kW and efficiency of 95%.

The 2094-AC09-M02-S comes with an integrated Safe-Torque Off (STO) functionality which is a ISO 13849-1 PLe/SIL3-certified safety feature.

The Allen-Bradley 2094-AC09-M02-S is a 200 to 230 Volt AC Bulletin 2094 Integrated Axis Module with a 6 kW converter, three-phase input power, and 15 A inverter. It has a frequency of 47 to 63 Hertz, an AC input voltage of 195 to 264 Volts RMS, 20 milliseconds line loss ride through, and a 325 Volt DC nominal bus output voltage. On common-bus follower, the DC input current is 19 A and DC input voltage is 275 to 375 Volts DC. It has a main AC input current ranging from a nominal 19 Amperes RMS to a maximum inrush of 37 A (0 to pk). It is UL-listed to U.S. and Canadian safety standards and is CE-compliant. It is an essential system component of the Kinetix 6000 Multi-axis Servo Drives.

The 200 Volt-class 2094-AC09-M02-S IAM Servo Drive features built-in, ISO 13849-1 PLe/SIL3-certified safe torque-off functionality that prevents drive restarts whenever the safety circuit is tripped. By disabling the drive output, the motor torque is removed without requiring the entire machine to power off. This results in enhanced machine operating efficiency, minimized downtime, and a cut down on energy and production wastage. The connector sets include a replacement STO header with a jumper. To meet the Category 3 EN954-1 standard, an external safety relay is required. For applications that do not make use of the STO feature, bypass the safe torque-off circuit by installing jumper wires. The 2094-AC09-M02-S Module uses solid-state motor overload protection. A copper power wire should be used with a minimum rating of 75 degrees Celsius (167 degrees Fahrenheit), recommended wire size of 6 to 4 millimeters squared (10 to 12 AWG), and a 10 millimeter (0.38 inch) strip length. For proper operation and safety, earth ground connection is required.
