Description

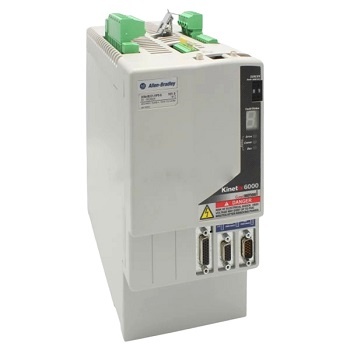

Allen-Bradley 2094-BC01-M01 AC Drive
- Extended Product Type: AC Drive
- Product ID: 2094-BC01-M01
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 2094-BC01-M01 AC Drive
Part number 2094-BC01-M01 is an integrated axis module, and it belongs to the Kinetix 6000 series of products. Designed and manufactured by Allen-Bradley, this device has a voltage rating of 460 volts alternating current (AC), with a nominal drive voltage of 360 to 480 volts AC. The input voltage of this device ranges from 324 to 528 volts AC rms, three-phase. The 2094-BC01-M01 has a control voltage that ranges from 95 to 264 volts rms, single-phase. This product has physical dimensions that measure 4.9 inches x 11.9 inches x 13.2 inches. The approximate weight of this device is 12.5 pounds.
Specifications of Allen-Bradley 2094-BC01-M01 AC Drive
- Brand : Allen-Bradley
- Series : Kinetix 6000 Modular
- Product Type : Multi-axis servo drive
- DC Bus Power Fuse : Bussmann Fuse : WJ-20A14F Mersen: DCT20-2; HSJ20
- Installation Clearance : 80 mm (3.10 in.)
- Power Dissipation range : 18-33 Watts
- Bus undervoltage : 275V DC
- Bus overvoltage : 825V DC
- Control Voltage : 95…264V rmss, ingle-phase (110…240V rms nom)
- AC input Voltage : 324…528V rms,three-phase (360…480V nom)
- Voltage Rating : 460 Volts AC
- Nominal Drive Voltage : 360 to 480 Volts AC
- Dimensions : 4.9 x 11.9 x 13.2 inches
- Weight : 12.5 pounds
The Allen-Bradley/Rockwell Automation 2094-BC01-M01 servo drive with multiple axes is part of the Kinetix 6000 product series. This series provides great performance and a variety of features that will reduce costs and simplify machine operation. The drives from this series are compact and they provide the necessary flexibility for adjusting to the design of different machines. The 2094-BC01-M01 Kinetix 6000 drive provides multi-axis integrated motion control through the Logix platform, improved control capabilities, built-in support for multi-turn absolute encoders, limited duty cycles for the production of torque rated at up to 250% of the continuous rated current, and higher peak current than similar devices do.
These drives are CE compliant and UL listed according to the safety standards of the US and Canada. The 2094-BC01-M01 servo drive has a voltage rating of 460 Volts AC and a nominal voltage of 360 to 480 Volts AC. This compact unit has an output current of 9 Amps and a wattage of 6 kilowatts. The AC input frequency of the drive is 47 to 63 Hertz while its nominal (RMS) to the maximum (0-peak) current range is 10 to 11 Amps. In addition to that, the 2094-BC01-M01 unit has an 805 Volt DC shunt-on and a 765 Volt DC shunt-off rating. Also, the drive has a continuous power output to a bus of 6 kilowatts, while its peak power output at 480 Volts is 15 kilowatts. The line loss ride-through rating of the drive is 20 RMS and its output voltage for the nominal bus rating is 650 Volts DC. The drive has a continuous output current of 9 Amps and a peak output current of 22.6 Amps. This drive comes with a drive status LED, a communication status LED, and a bus status LED. It also has a fault status LED with 7 segments to alert for faulty events. It also includes both auxiliary feedback and motor feedback connectors. There are certain requirements that should be met before the installation of the drive. The environment should be free from moisture, oil, mist, dust, or corrosive vapors. The base of the drive should not be subjected to shock or vibrations. The area should be well-ventilated to avoid heating problems.
