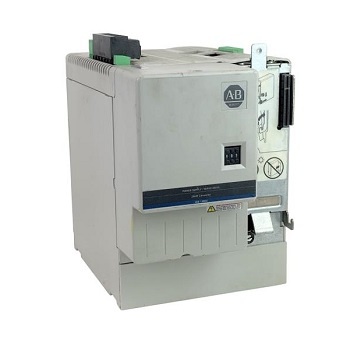

Allen-Bradley 2094-BC04-M03-M AC Drive

AVAILABILITY: Generally allow 7-10 days to ship



Description

Allen-Bradley 2094-BC04-M03-M AC Drive

  • Extended Product Type: AC Drive
  • Product ID:  2094-BC04-M03-M
  • Allen-Bradley Type Designation: AC Drive

Description of Allen-Bradley 2094-BC04-M03-MAC Drive

This is the 2094-BC04-M03-M module manufactured by Allen-Bradley and forms part of a Kinetix 6000 system. This unit is an integrated axis module with a converter, as well as an inverter. Peak Enhanced and Safe Torque-Off features are not available with this IAM. The module operates at 460 volts AC. The inverter is rated for 13.5 kilowatts of power and the converter has a peak power output rated at 69 kilowatts.

Specifications of Allen-Bradley 2094-BC04-M03-M AC Drive

  • Brand : Allen-Bradley
  • Series : Kinetix 6000
  • Continuous power output to bus : 27.6kW
  • Power Dissipation range : 94-255 Watts
  • Bus undervoltage : 275V DC
  • Bus overvoltage : 825V DC
  • Control Voltage : 95…264V rmss, ingle-phase (110…240V rms nom)
  • AC input Voltage : 324…528V rms,three-phase (360…480V nom)
  • Continuous output current to bus : 41.5 A
  • Wattage : 13 kWatts
  • Nom Drive Voltage : 360-480 Volts (3 Phase)
  • Voltage Rating : 460 Volt (AC)
  • Output Current : 30 Amperes
  • Power Module : Integrated Axis Module
  • Max Bus Capacitance : 8955 Microfarads
  • Dimensions : 7.7 x 11.9 x 16.7 in (196 x 302 x 426 mm)
  • Weight : 21.0 lbs (9.53 kg)

The 2094-BC04-M03-M is an axis module from the Kinetix 6000 Multi-Axis servo drive product family. This module mainly features an output power to bus of 13.5 kW with a Continuous output current to bus of 21.2 A, Continuous current (sine) 0-pk of 30.0 A, Peak current (rms) of 53.0 A and Peak current (0-pk) of 75.0 A.

This axis module is operated by supplying an AC input voltage of 360VAC-480VAC. It has a velocity loop bandwidth of 500Hz and Current loop bandwidth of 1300 Hz. It has a Pulse Width Modulation (PWM) frequency of 4 kHz with nominal input voltage of 650VDC.

This axis module has an efficiency of 98% with capacitance of 840 F and capacitive energy absorption of 108 Joules while the short-circuit current rating is 200,000 A (rms) symmetrical.

The module’s internal shunt delivers a continuous power of 200Watts with peak power of 22.5 kW. The appropriate internal shunt resistor value is 28.75 Ohms with Shunt On voltage of 805VDC and Shunt off voltage of 765VDC.
