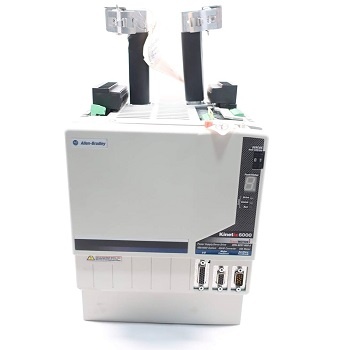

Allen-Bradley 2094-BC07-M05-S AC Drive
- Extended Product Type: AC Drive
- Product ID: 2094-BC07-M05-S
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 2094-BC07-M05-S AC Drive
The product is a Kinetix 6000, integrated axis module with a rated alternating current input supply of 360/480 Volts and a frequency of 50/60 Hertz. Both the input and output are 3 Phase and the nominal output current is 34.6 Amperes. The Bus direct input voltage ranges from 458-747 Volts with an input current of 68 Amperes. The power ratings of the system are 45 Kilowatts at 68 Amperes converter and 22 Kilowatts at 49 Amperes inverter. It has a single hardware interface type RS-485 and operates at temperatures between 0 – 50 degrees Celsius.
Specifications of Allen-Bradley 2094-BC07-M05-S AC Drive
- Brand : Allen-Bradley
- Series : Kinetix 6000
- Module Type : IAM 400 Volt Class
- AC Input Voltage : 324…528V rmsthree-phase (360…480V nom)
- AC Input Frequency : 47…63 Hz
- Peak power output : Series A: 90 kW Series B: 135 kW
- Continuous power output to bus : 45 kW
- DC Input Voltage (Common Bus Follower) : 458…747V DC
- Control power AC input voltage : 95…264V rmssingle-phase (110…240V rms nom)
- DC input current (common-bus follower) : 67.7 A
- Power Dissipation : 71-226 Watts
- AC Input Current (nom rms) : 71.0 Amperes
- AC Input Current (Max Inrush 0-peak) : 62.2 Amperes
- DC Input Current (Common Bus Follower) : 67.7 Amperes
- Internal Shunt (Continuous Power) : 200 Watts
- Efficiency : 97%
- Weight : 22.3 lbs (10.1 kg)
The 2094-BC07-M05-S is a Kinetix 6000 Drive component. This product is an integrated axis module, that is installed on the leftmost side of the power rail. This module is operated with an input voltage range of 360-480V nominal, with range of 324…528V rms, 3-phase along an input frequency range of 47063 Hz.
The 2094-BC07-M05-S is integrated with Safe Torque-off feature. This particular catalog number is available in Three (3) series, specifically series A with standard overload support while Series B and C has Standard or Peak Enhanced option. Standard mode is set as the default setting for preserving backward compatibility however, the peak enhanced mode can be activated to achieve increased peak current performance. The Peak enhanced current of the 2094-BC07-M05-S has a peak inverter current rating of 150% for standard and 200% for enhanced while the peak converter current rating for is 200% for Series A and 300% for Series B.
The recommended control input power fuse and circuit breaker for the 2094-BC07-M05-S is Bussmann fuse FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A) and 1492-SPM2D060 or 1492-SPM1D150 respectively. For DC bus power, the recommended Bussmann fuse is FWJ-125A and Mersen fuse A70QS125-4. For control input power, the FNQ-R-7.5 for high single cycle inrush current capability. When the continuous control power current exceeds 3.0A, this fuse is recommended.
Brand
Allen-Bradley
