Allen-Bradley 2094-BL02 AC Drive

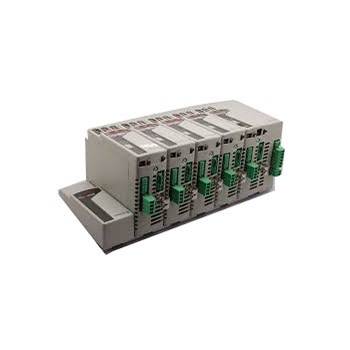

The 2094-BL02 module is a line interface module that is manufactured by Allen-Bradley/Rockwell Automation as part of the 2094 Kinetix 6000 product line. This module operates on a 3-phase voltage rating of 400 to 460 Volts AC, a current rating of 30 Amps, and an internal control line filter voltage rating of 230 Volts AC. It also has 24 Volts DC power output voltage with a current capacity of 8 Amps. The 2094-BL02 line interface module comes with items such as a connector set for the 2094-ALxxS, BLxxS, and XL75S-Cx modules. The items include the Volts AC line (IPL), I/O (IOL), control power (CPL), Volts AC load (OPL), 230 Volts auxiliary output (P2L), 24 Volts brake I/O power (P1L), and the auxiliary 230 Volts input (APL) connectors.

The Allen-Bradley 2094-BL02 module also features a connector set for the 2094-AL09 and 2094-BL02 line interface modules, including the 24 Volts brake I/O power (PSL), VAC load (OPL), VAC line (IPL), and the control power (CPL) connectors. However, the I/O (26-pin) connector for the 2094-BL02 and 2094-AL09 modules is not provided. The 2094-BL02 line interface module has several requirements for proper mounting. It must be enclosed in a grounded enclosure that offers protection according to the EN 60529 (IEC 529) and that makes the internal parts of the module inaccessible to unskilled operators and that also complies with the CE and UL requirements. The NEMA 4X enclosure meets or exceeds all of these requirements and it offers an IP 66 protection rating. The panel installed in the enclosure for the mounting of the system components should be on a rigid, flat, vertical surface which will not be subjected to moisture, shock, oil mist, vibration, corrosive vapors, or dust.
