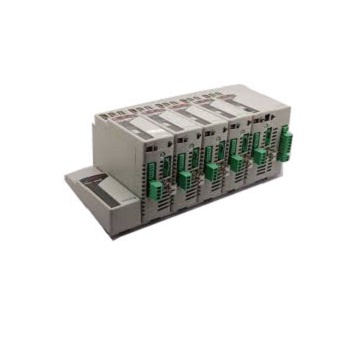

Allen-Bradley 2094-BL75S AC Drive

The Allen-Bradley 2094-BL75S module is a line interface module manufactured by Allen-Bradley/Rockwell Automation as part of the 2094 Kinetix interface module series. This module has an input voltage of 460 Volts AC (nominal) and it runs on an input voltage range of 380 to 520 Volts AC (RMS). It also has 3-phase voltage and a frequency range of 47 to 63 Hertz. The 2094-BL75S line interface module has a main AC output current of 75 Amps (RMS), and a control AC output current of 3 Amps (RMS). The module also features an auxiliary AC output voltage of 190 to 260 Volts AC (RMS) and a 1-phase nominal voltage of 230 Volts. Other notable specifications include an input and output load capacity of 24 Volts DC and a current rating of 20 Amps. It has a contactor control voltage of 21.6 to 26.4 Volts DC, a contactor control current of 9 to 12 milliamps, and a contactor pickup time of 18.5 to 30 milliseconds.

The contactor dropout time for the Allen-Bradley 2094-BL75S module is 10 to 60 milliseconds with a power dissipation rating of 42.9 Watts. The 2094-BL75S line interface module offers a compact and economical way of supplying all of the control options and the components needed for an industrial drive application. This module is compatible and suitable for use with several Allen-Bradley servo drives and AC drives to help decrease the time and costs that are required for supplying all of the commonly needed components for the system. The Allen-Bradley 2094-BL75S line interface module and the 2094-XL75S-C2 modules are designed and intended to supply input power to up to a maximum of 8 axes. However, the 2094-BL75S module does not support the 2094 mounting brackets.
