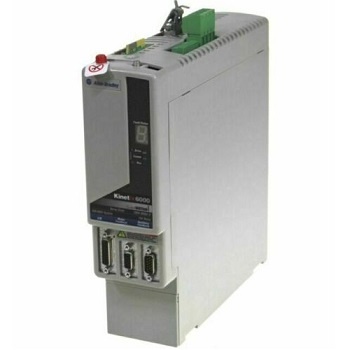

Allen-Bradley 2094-BM02-S AC Drive

AVAILABILITY: Generally allow 7-10 days to ship



Description

Allen-Bradley 2094-BM02-S AC Drive

  • Extended Product Type: AC Drive
  • Product ID:  2094-BM02-S
  • Allen-Bradley Type Designation: AC Drive

Description of Allen-Bradley 2094-BM02-S AC Drive

Designed and produced by Allen Bradley, product number 2094-BM02-S is an axis module. This module has a velocity loop bandwidth of 500 hertz, as well as a current loop bandwidth of 1300 hertz. The nominal input voltage of this device is 650 volts DC. It has a continuous current rating of 10.3 amperes rms and 14.6 amperes sine from 0 to peak performance. This axis module has an efficiency rating of 97%. This product has an approximate weight of 2.54 kilograms.

Specifications of Allen-Bradley 2094-BM02-S AC Drive

  • Brand : Allen-Bradley
  • Series : Kinetix 6000
  • Internal shunt peak power : 5.6 kW
  • Internal Shunt continuous power : 50 W
  • Nom Drive Voltage : 360-480 Volts (3 Phase)
  • Voltage Class : 400V
  • Continuous power out (nom) : 6.6 kW
  • Peak Current : 25.8 A
  • Continuous Output Current (sine) : 14.6 A
  • Continuous Output Current : 10.3 A
  • Efficiency : 98%
  • Internal Shunt Resistor : 115 Ohms
  • Input Voltage : 460 Volts
  • Heat Dissipation : 93 Watts
  • Weight : 5.6 pounds (2.54 kilograms)

The Allen-Bradley 2094-BM02-S is a multi-axis module that is a component product of the Kinetix 6000 Multi-Axis Drive Servo system. This module comes with an integrated Safe-Torque Off (STO) safety functionality that can be applied for applications that require up to Safety Integrity Level (SIL) 3 and Performance Level (PLe). This axis module is a single wide module that supports up to Seven (7) for each 8-axis power rail.

The 2094-BM02-S supports bandwidth velocity loop frequency of 500 Hz and Current loop frequency of 1300 Hz with Pulse Width Modulation (PWM) frequency of 4 kHz. The nominal input voltage of this axis module is 650VDC with continuous current requirement (rms) of 10.3 Amperes and continuous Current (sine) 0-pk of 14.6 Amperes.

With peak enhancement, this axis module may be used in applications that require fast acceleration and deceleration. The 2094-BM02-S has 150% standard peak inverter current rating and significantly increases up to 250% when peak enhanced.

The 2094-BM02-S has a continuous current (rms) of 10.3 Amperes and continuous current (sine) 0-pk of 14.6 Amperes with efficiency of 98% and 200,000 Ampere (rms) symmetrical, short circuit current rating. This axis module has a 115 Ohm internal shunt resistor with internal shunt continuous power of 50 Watts and peak power of 5.6 kWatts.
