Description

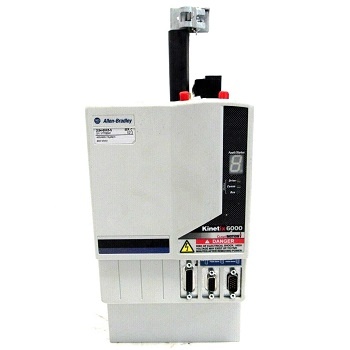

Allen-Bradley 2094-BM05-S AC Drive
- Extended Product Type: AC Drive
- Product ID: 2094-BM05-S
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 2094-BM05-S AC Drive
Part number 2094-BM05-S is an axis module that was designed and produced by Allen Bradley. This product has a nominal input voltage of 650 volts DC. This unit has a continuous current rated at 34.6 amperes rms, as well as 48.9 amperes sine from 0 to peak performance. This product has a velocity loop bandwidth of 500 hertz and a current loop bandwidth of 1300 hertz. The efficiency rating of this unit is 97%. It has an approximate weight of 4.98 kilograms.
Specifications of Allen-Bradley 2094-BM05-S AC Drive
- Brand : Allen-Bradley
- Series : Kinetix 6000
- Internal shunt peak power : 22.5 kW
- Internal Shunt continuous power : 200W
- Nom Drive Voltage : 360-480 Volts (3 Phase)
- Voltage Class : 400V
- Continuous power out (nom) : 22.0 kW
- Peak Current : 69.2 A
- Continuous Output Current (sine) : 48.9 A
- Continuous Output Current : 34.6 A
- Efficiency : 98%
- Internal Shunt Resistor : 28.75 Ohms
- Nom Input Voltage : 650 Volts DC
- Continuous Current (rms) : 34.6 Amperes
- Continuous Current (sine, 0-peak) : 48.9 Amperes
- Bandwidth Current Loop : 1300 Hertz
- Weight : 11.0 lbs (4.98 kg)
The 2094-BM05-S is an Allen-Bradley axis-module that is part of the Kinetix 6000 Multi-Axis Drive Servo system. This axis module is a 400V class Axis Module featuring a continuous current (rms) of 34.6 Amperes and continuous current (sine) 0-pk of 48.9 Amperes. This axis module has a rated efficiency of 98%. It has a short-circuit current of 200,000 A (rms) symmetrical.
The 2094-BM05-S has a built-in safety feature such as Performance Level (PLe) and Safety Integrated Level (SIL) 3 rated Safe Torque-Off functionality. This functionality is certified by ISO 13849-1. This safety feature prevent immediate restarting of the drive when the safety circuit is activated. An external relay must be installed to enable the drive to meet EN954-1, Category 3 standard.
With direct integration, the 2094-BM05-S parameters may be accessed and dynamic drive configuration may be sent and received to the servo drive.
The 2094-BM05-S ‘has a continuous power output of 22.0kW. It supports bandwidth frequencies of 500 Hz for Velocity loop and 1300 Hz for Current loop. It has a Pulse Width Modulation (PWM) frequency of 4 kHz and nominal input voltage of 650 VDC. Depending on the drive series, the peak current (rms) values varies. Series A drives are rated 51.9 Amperes while series B and C drives are rated for 69.2 Amperes. Similarly, peak current (0-pk) values are 73.4 Amperes for Series A and 97.9 Amperes for Series B and C drives, respectively.
