Allen-Bradley 2094-BMP5-S AC Drive

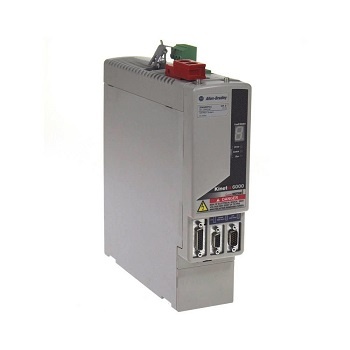

The Allen-Bradley 2094-BMP5-S is an Axis Module from the Kinetix 6000 Drive family. It is supplied with built-in inputs such as Two (2) registration inputs, One (1) home input, Two (2) over-travel inputs and One (1) axis enable input to allow this drive to be hardwired with appropriate signaling device to perform such monitoring and control functions.

The 2094-BMP5-S is an axis module provided with integrated safety by way of the Safe Torque-Off (STO) feature. This safety feature is certified ISO 13849-1 PLe/ Safety Integrity Level (SIL) 3. To meet the EN954-1, Category 3 standard, an external safety relay must be added. This STO works by safely removing Torque in the event of circuit trip and prevents drive restart upon the system going back to normal condition. This prevents unwanted operation and lowers the risk and danger to properties and operating and troubleshooting individuals.

The 2094-BMP5-S is powered by an input supply voltage range of 324-528V rms, 3-phase. Its nominal voltage level are 360 / 480V and it belongs to the 400 V voltage category. It provides a continuous output current (rms) of 2.8 A, Continuous current (sine) 0-pk of 4.0 A, Peak current (rms) of 4.2 A for Series A 2094-BMP5-S drive and 7.0 A for Series B and C drives. Similarly, the Peak current (0-pk) is 5.9 A for Series A drives and 9.9 A for Series B and C drives. Regardless of the series, the output remains typical which is 1.8 kW. It is important to understand that peak current ratings are intended for high-speed operation. When operating at constant velocity and electrical output frequency is below 5 Hz or 75 rpm for 8-pole motors, the output current are reduced.
