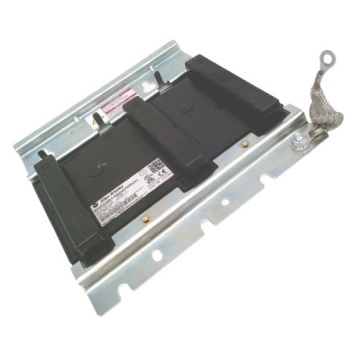

Allen-Bradley 2094-PRS2 AC Drive
- Extended Product Type: AC Drive
- Product ID: 2094-PRS2
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 2094-PRS2 AC Drive
Product number 2094-PRS2 is a Kinetix 6000 slim power rail module. This module was designed and manufactured by Allen Bradley / Rockwell Automation. This device has a voltage rating of 230 volts or 460 volts. This device supports one (1) IAM module, as well as up to one (1) additional module. This slim power rail module has physical dimensions that measure 205.7 mm x 124.5 mm, or 8.10 inches x 4.90 inches.
Specifications of Allen-Bradley 2094-PRS2 AC Drive
- Brand : Allen-Bradley
- Series : Kinetix 6000
- Module Type : Slim Power Rail
- Applications : 230 or 460 Volt Drive Systems
- Module Capacity : 1 IAM, 1 Additional
- Number of Axes : 2-Axes
- Dimensions : 8.1 x 4.9 in (205.7 x 124.5 mm)
- Weight : 3.5 lbs (1.59 kg)
The 2094-PRS2 Kinetix 6000 Slim Power Rail is a 230V or 430V electronic device which supports a single IAM and an additional AM module, shunt module, or a slot filler module. The main function of the 2094-PRS2 Kinetix 6000 is as a component of the Kinetix 6000 drive system that transfers power and signals from the IAM to the AM module, the shunt module, or the slot filler module. It has a converter slot on the left side of the rail and 2 inverter slots that can only accommodate a single IAM module and one additional module (AM, shunt, or the slot filler). Like every power rail in the 2094PRxx series, the slot pin position is covered and protected from any unwanted outside agent that may damage the slot pin. This limits its functionality.
The 2094-PRS2 is designed to sustain its normal function at up to 1000 meters (3281 feet) altitude without de-rating, and at a surrounding temperature of 0-50 °C (32-122 °F) it can operate at a maximum shock of 15G. It is designed to maintain its optimal function at a non-condensing relative humidity of 0-95% and it can be stored at a temperature between -40 and 70 °C (-40 and 158 °F). The 2094-PRS2 is c-UL-us certified to operate in the US and is IEC 61508: Part 1-7:2000 certified for functional safety. The 2094-PRS2 has product dimensions of 205.7mm (8.1in) x 124.5mm (4.9in) and a weight of 1.59Kg (3.5lb).
