Allen-Bradley 2094-SE02F-M00-S1 AC Drive

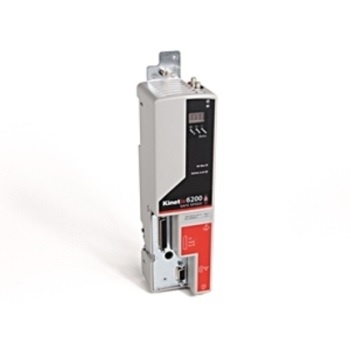

The 2094-SE02F-M00-S1 module is a control module available through the Kinetix 6200 series by Allen-Bradley/Rockwell Automation. The control modules from this series can be combined IAM/AM power modules to allow the users to use them as interfaces for I/O, functional safety, communication, and other applications. The compatible IAM power modules are built for an input voltage range of 324 to 528 Volts AC and 3-phase power sources. These power modules have an efficiency rating of 97% and a bus overvoltage rating of 825 Volts DC. The 2094-SE02F-M00-S1 control module is compliant with the CE and UL standards, meaning that it is made in accordance with the EU, US, and Canadian safety standards. The Kinetix 6200 product series offers a variety of standard safety features along with built-in special safety features like the Safe Torque-Off and Safe Speed Monitor.

The 2094-SE02F-M00-S1 control module also has an integrated Safe Speed Monitor safety feature that perfectly combines the capability of the Safe Torque-Off feature and an advanced core technology such as the Safe-Speed Control. The modules with the Safe-Speed Control embedded safety relays are certified as the PLe/SIL3 relays. The 2094-SE02F-M00-S1 control module has small dimensions and an approximate weight of 0.68 kilograms or 1.5 pounds. The module uses the fiber-optic Sercos interface and it has a Rx/Tx port. The 2094-SE02F-M00-S1 module has 1 Ethernet port and it is intended for operation with industrial controllers from the Logix 5000 series. The module mounts on a rail and it has an operating temperature range of 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit). In addition to that, the storage temperature range for the unit is -40 to 70 degrees Celsius (-40 to 158 degrees Fahrenheit).
