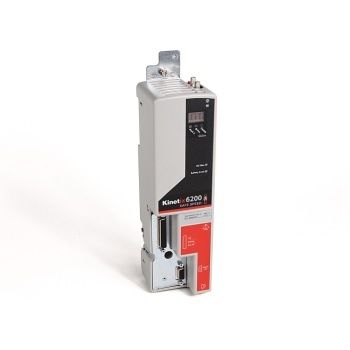

Allen-Bradley 2094-XL75S-C1 AC Drive

The line interface module (LIM) that is known as the 2094-XL75S-C1 module is designed and developed by Allen-Bradley/Rockwell Automation, a well-known producer of industrial solutions for power, automation, and control applications. This Bulletin 2094 module is compatible with drives from several Kinetix drive families and its purpose is to replace various common input power devices which are necessary for the proper operation of the system with servo drives. The users can reduce overall the costs and improve the design of a machine system with the integration of an LIM module. The 2094-XL75S-C1 module provides a simpler configuration process in comparison with discrete components and it reduces the unnecessary wiring that is found in systems with individual components with a separate mounting base.

The 2094-XL75S-C1 line interface module has an operating cycle that is typical for all the Kinetix drives. The operating temperature ranges from 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit) and its storage temperature is between -40 and 70 degrees Celsius (-40 and 158 degrees Fahrenheit). The 2094-XL75S-C1 module has a current rating of 75 Amps and current capacity of 20 Amps. The input voltage of the module is 230 to 460 Volts. The module has a wire size of 14 to 4 AWG and it uses an external AC line filter that can be supplied by the users. Since the module is used with multi-axis servo drives from the Kinetix drive series, it is certified according to the CE and UL standards and built according to requirements set out for industrial systems that operate at the highest level. The 2094-XL75S-C1 LIM module has a power output of 24 Volts DC and it is made for auxiliary power input with a voltage of 110 Volts.
