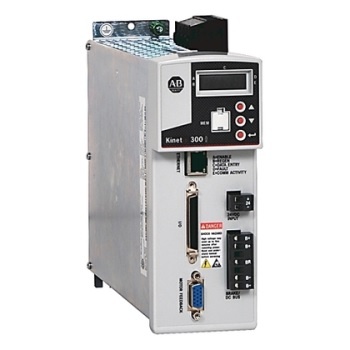

Allen-Bradley 2097-V33PR5 AC Drive

• Brand : Allen-Bradley
• Series : 2097
• AC input voltage : 80…132V rms single-phase (120V nom), 80…264V rms single-phase (240V nom), 80…264V rms three-phase (240V nom)
• AC input frequency : 48…62 Hz
• Main AC input current, Nom (0-pk) : 2.3 A
• Main AC input current, Nom (rms) : 8.7 A
• Integrated AC Line Filter : No
• Control power back-up input voltage : 20…26V DC
• Control power back-up input current, max. inrush : 30 A
• Control power back-up input current, nominal : 500 mA
• Continuous output current (rms) : 8.0 A
• Continuous output current (0-pk) : 11.3 A
• Peak output current (rms) : 24.0 A
• Peak output current (0-pk) : 33.9 A
• Continuous power output(240V nom or 120V ) : 2.00 kW
• Shunt on : 390V DC
• Shunt off : 375V DC
• Dimensions : 9.37 x 7.29 x 2.70 in (238 x 185 x 69.0 mm
• Weight : 4.4 lbs (2.0 kg)

The 2097-V33PR3-LM is an Allen-Bradley servo drive. It is enabled for Ethernet communication. It is capable of platform integration with ControlLogix, CompactLogix, or MicroLogix controllers. This servo drive is also compatible with a variety of input voltage class and ranges of 80-132 VAC rms, 1-phase; 80-264 VAC rms, 1-Phase and 80-264 VAC, 3-phase at a common frequency of 48-62 Hz.

The 2097-V33PR3-LM’s output power ratings include continuous output current (rms) of 4.0 Amperes; continuous output current (0-pk) of 5.7 Amperes; peak output current (rms) of 12.0 Amperes and peak output current (0-pk) of 17.0 Amperes while the continuous output power is 1.00 kW @ nominal voltage of 240 VAC.

While the 2097-V33PR3-LM does not have an integrated filter, it is included with an integrated Safe-Torque Off (STO) functionality. This safety feature is a Safety Integrated Level (SIL) 3 rated feature, allowing the drive to be used in applications with safety applications.

The 2097-V33PR3-LM has bus overvoltage detection set at 430 VDC and short-circuit current rating of 100,000 Amperes, symmetrical. The drive’s control back-up input voltage is 20-26 VDC nominal input current of 500 milliAmperes and maximum inrush current of 30 Amperes.

The 2097-V33PR3-LM Kinetix servo drive has power dissipation of 39 Watts. During installation, the recommended minimum installation clearance is 25 mm (1.0 inch) Top and bottom clearance; 3 mm (0.12 inch) side clearances. For reduction of electrical noise, the drive is recommended to be installed in a bonded arrangement where metal chassis, assemblies, frames, shields, and enclosures to reduce the effects of electromagnetic interference (EMI). It also contributes that the sub panel used for installation is paint-free or plated.
