Allen-Bradley 2097-V34PR3 AC Drive

• Brand : Allen-Bradley
• Series : 2097
• AC input voltage : 320…528V rms three-phase (480V nom)
• AC input frequency : 48…62 Hz
• Main AC input current, Nom (0-pk) : 4.5 A
• Main AC input current, Nom (rms) : 2.7 A
• Integrated AC Line Filter : No
• Control power back-up input voltage : 20…26V DC
• Control power back-up input current, max. inrush : 30 A
• Control power back-up input current, nominal : 500 mA
• Continuous output current (rms) : 2.0 A
• Continuous output current (0-pk) : 2.8 A
• Peak output current (rms) : 6.0 A
• Peak output current (0-pk) : 8.5 A
• Continuous power output(240V nom or 120V ) : 1.00 kW
• Shunt on : 780V DC
• Shunt off : 750V DC
• Dimensions : 9.37 x 7.29 x 2.70 in (238 x 185 x 69.0 mm
• Weight : 3.3 lbs (1.5 kg)

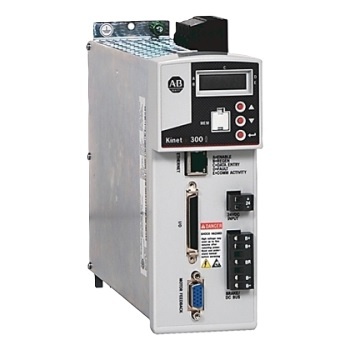

The Allen-Bradley is 2097-V34PR3 is a Kinetix 300 Ethernet I/P Indexing Servo Drive. This Servo drive is used to implement motion control applications, compatible with Kinetix MP and TLY Rotary Motors, Kinetix MPAI Heavy-duty Electric Cylinders, Kinetix MPAR Electric Cylinders, LDAT-Series Linear Thrusters (, LDC-Series™ Linear Motors, LDL-Series™ Linear Motors and Kinetix MPAS Integrated Linear Stages.

Aside from the supported motors and actuators, this Kinetix drive is capable of communicating via the drive’s integrated Ethernet interface. Compatible partner devices include Remote I/O devices such as 1734-AENT POINT I/O EtherNet/IP Adapter, PanelView Display Terminals, ComapctLogix, MicroLogix, ControlLogix Programmable Automation Controllers (PAC)s.

This Kinetix drive has an input supply voltage requirement of 3-Phase, 320-528V rms, 3-phase with 480V nominal value. Any of these voltages may be used to energize the drive. The 2097-V34PR3 drive also has continuous output current and power of 2.8A and 1.0 kW respectively.

The 2097-V34PR3 has integrated protection circuits intended for Overvoltage protection with rating of 850VDC and short circuit current rating of 100,000 A (rms) symmetrical. Additionally, this drive features a safe Torque-Off functionality that is certified for ISO 13849-1 PLd/SIL2.

The 2097-V34PR3 has an operating temperature of 0-40 °C or 32-104 °F with relative humidity of 5…95% non-condensing. The installation surface of this kinetix drive must not exhibit vibration and shock ratings of 5…2000 Hz @ 2.5 g peak, 0.015 mm (0.0006 in.) displacement, max and 15 g, 11 ms half-sine pulse (3 pulses in each direction of 3 mutually perpendicular directions), respectively.
