Allen-Bradley 2098-DSD-075 AC Drive

• Brand : Allen-Bradley
• Series : 2098
• Product Type : Digital Servo Drive
• Output Current (Continuous) : 75 Amps (0-peak)
• Output Current (Intermittent) : 35 Amps (0-peak)
• Continuous output power @ 230 VAC : 3.75 kW
• Continuous output power @ 480 VAC : 7.5 kW
• Input Voltage (AC) : 120 – 240 Voltage rms, 3-Phase
• Input Frequency (AC) : 47-63 Hz
• Bus Overvoltage : 452 V dc
• Nominal Input Current (AC) : 30 Amps RMS
• Dimensions : 14.2 x 9.37 x 5.41 inches

The 2098-DSD-075 controller is an Ultra 3000 digital servo controller that has been manufactured and designed by Rockwell Automation (Allen-Bradley). The 2098-DSD-075 Ultra 3000 digital servo controller is an analog controller that operates with a voltage range of 100 to 240 Volts AC and at an estimated frequency of 47 to 63 Hertz. Its main input current at nominal voltage is 30 Amps and can reach 50 Amps when at zero-peak maximum inrush. It has a continuous output current of 24.7 Amps that reaches 35 Amps at zero-peak. The Rockwell Automation (Allen-Bradley) 2098-DSD-075 Ultra 3000 digital servo controller is widely used in different industries for a variety of device control applications in SLC and third-party machine control systems. The 2098-DSD-075 controller has specifications and features that make it one of the most versatile servo drives on the market. It offers an internal shunt resistance of 16.5 Amps and 4290 µF bus capacitance with a bus overvoltage value of 452 Volts DC. When installing the 2098-DSD-075 Ultra 3000 digital servo controller, it is recommended to maintain a clean environment with an ambient temperature range of -40 to 70 degrees Celsius and a relative humidity range of 5 to 95%. It is also recommended to install it enclosed in a grounded cabinet that prevents the drive from dirt and dust. Clearances must be left on each side of the servo controller in order to promote ventilation and prevent overheating. The drive must be mounted in a vertical position. A motion control system utilizing the 2098-DSD-075 Ultra 3000 digital servo controller must have 1 rotary servo motor or linear actuator, 1 motor power cable, and 2 fiber-optic cables. This drive is compatible with MP-Series, LDC-Series, and the LDL-Series servo motors.

Protection components may be added to the 2098-DSD-075 Ultra 3000 digital servo controller, it is recommended to install a fuse or circuit breaker on it first. It has an enabled default value for auto motor identification, and it automatically detects the motor that is being used, but only Allen-Bradley motors with intelligent encoders are recognized.

The Allen-Bradley 2098-DSD-075 is part of the Kinetix Motion control system. It specifically belongs to the Ultra 3000 Series, functioning as an analog controlled Digital Servo Drive (DSD). This drive features a built-in microprocessor that mainly enables the programmable nature and fast processing of feedback signals to the drive.

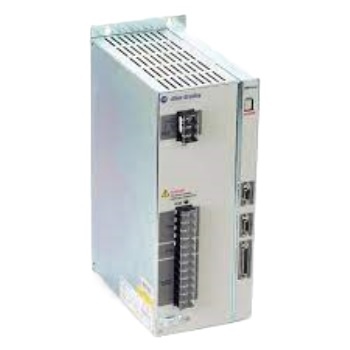

The 2098-DSD-075 front panel assembly includes a variety of terminal strips intended for installation of Passive Shunt Resistor (TB2), Motor Power Connections, DC Bus Voltage, AC Input Power Connections (all located in TB1) and motor power cable shield clamp. It also has a seven-segment status LED display and logic power LED.
