Allen-Bradley 2098-DSD-HV030X-DN AC Drive
AVAILABILITY: Generally allow 7-10 days to ship
Description

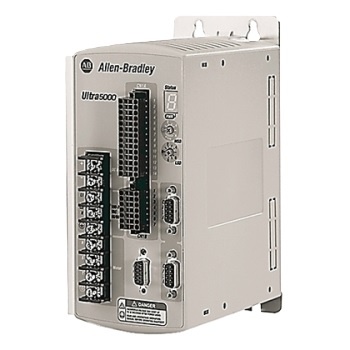

Allen-Bradley 2098-DSD-HV030X-DN AC Drive
- Extended Product Type: AC Drive
- Product ID : 2098-DSD-HV030X-DN
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 2098-DSD-HV030X-DN AC Drive
The Allen-Bradley 2098-DSD-HV030X-DN is a digital servo drive designed work at 460V AC, 3 phase. It can deliver continuous output power of four (4) horsepower and a continuous output current of seven (7) amps. The intermittent output current is fourteen (14) amps and the maximum inrush current is sixty-eight (68) amps. It is indexed with sixty-four (64) possible profiles and 4 modes of operation and supports serial and DeviceNet communications.
Specifications of Allen-Bradley 2098-DSD-HV030X-DN AC Drive
- Brand : Allen-Bradley
- Series : 2098
- Output Current (Intermittent) : 14 Amps (0-peak)
- Output Current (Continuous) : 7 Amps (0-peak)
- Nominal Input Current (AC) : 4 Amps Root Means Square
- Input Frequency (AC) : 47-63 Hz
- Input Voltage (AC) : 230-480 Voltage Root Means Square (Three Phase)
- Bus Overvoltage : 810V dc
- Auxiliary Power Supply : Yes
- Dimensions : 9.54 x 14.2 x 5.46 in (242.2 x 360.7 x 138.7 mm)
The Allen-Bradley 2098-DSD-HV030X-DN is an Ultra 3000I digital high-voltage servo drive. This three-phase drive comes with a DeviceNet interface and a 230-480V AC RMS input voltage. It has a continuous output current of 11 A and an intermittent output current of 22 A, both at 0-pk. Its main AC input currents are 4 A nominal at 460V AC RMS and 6 A maximum inrush at 460V AC RMS. This drive’s auxiliary AC input currents are 47 A maximum inrush at 230V AC at 0-pk, 68 A maximum inrush at 480V AC at 0-pk, 0.55 A nominal at 230V AC RMS, 0.35 A nominal at 360V AC, and 0.25 A nominal at 480V AC.
The 2098-DSD-HV030X-DN drive has a bus overvoltage of 810V DC and a bus capacitance of 470 µF. It also has a shunt-on of 800V DC, shunt-off of 750V DC, and an internal shunt resistance of 120 Ω. The internal shunt of this drive has a 100 W continuous power and 5.3 kW peak power, while the external shunt has a 120 Ω resistance at 0/5%, 3 kW continuous power, and 5.3 kW peak power. It also has continuous power outputs of 1.5 kW at 230V AC input and 3 kW at 460V AC input. The energy absorption capabilities of the 2098-DSD-HV030X-DN drive are 15 J at 230V AC input with a 230V motor, 129 J at a 230V AC input with 460V motor, and 55 J at 460V AC input.
The operating vibration of the 2098-DSD-HV030X-DN drive is 5-2000 Hz at 2.5 g peak with a maximum displacement of 0.015 inches or 0.0006 mm and shock is 15 g, 11 ms half-sine. Its ambient operating temperature ranges from 0-55 ËšC and non-operating temperature ranges from -40-70 ËšC. It also has a non-condensing relative humidity of 5-95% and a maximum operating altitude of 1500 m that derates by 3% per 300 m above 1500 m. It has an approximate weight of 8.55 kg or 18.8 lbs and measures 9.54 x 14.2 x 5.46 inches.
