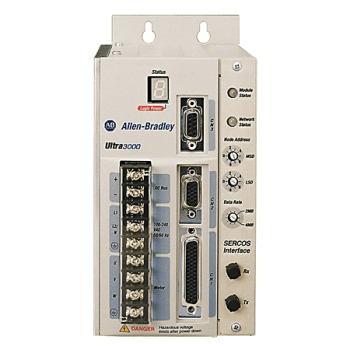

Allen-Bradley 2098-IPD-020 AC Drive

• Brand : Allen-Bradley
• Series : 2098
• Output Current (Intermittent) : N/A
• Output Current (Continuous) : 10 Amps (0-peak)
• Auxiliary Power Supply : No
• Nominal Input Current (AC) : 18 Amps Root Means Square
• Input Frequency (AC) : 47-63 Hz
• Input Voltage (AC) : 100-240 Voltage Root Means Square (Single Phase)
• AC Input Current : 18 A
• Continuous Output Current : 10A (0-peak)
• Output Peak Current : 30 A(0-peak)
• Bus Overvoltage : N/A
• Shunt On : N/A
• Dimensions : 5.50 x 5.69 x 8.08 in (139.70 x 144.53 x 205.23 mm)

The Allen-Bradley 2098-IPD-020 is an Ultra 5000 Intelligent positioning drive. This drive is used to drive servo motors with high positioning accuracy. This drive features an AC input voltage requirement of 100-240Vrms, 1-Phase to operate and input frequency of 47-63 Hz. It delivers an output power 1.0 kW at 115 VAC input and 2.0 kW at 230VAC input. Additionally, the output current of this drive are 30A Output Peak Current and 10A Continuous Output Current.

When installing this intelligent positioning drive, several considerations must be taken into account. Being classified as a controlgear device, this drive must be installed within an enclosure that complies with the IEC60529 requirement. It must be installed within an enclosure that provides even, rigid and vertical surface that is built with shock limiting components and prevent entry of particulates and contaminants that are commonly found in industrial applications. Additionally, an ambient temperature not exceeding 55° C (131° F) must be maintained. Install approppriate climate control devices such as fans or heaters that are appropriately sized to maintain the required temperature. Mounting clearances must be met as well to ensure proper air flow and enough working and servicing space. Required mounting clearance are 12.7 mm or 0.5 in. side clearances and 50.8 mm or 2.0 in. top and bottom clearances.
