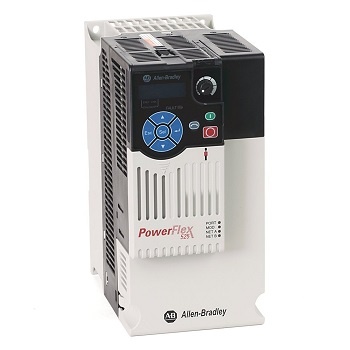

Allen-Bradley 25B-D024N104 AC Drive 15HP 11kW 25BD024N104
$2,680.00
AVAILABILITY: Generally allow 7-10 days to ship
10 in stock
Description
Allen-Bradley 25B-D024N104 AC Drive 15HP 11kW 25BD024N104
- Extended Product Type: AC Drive
- Product ID: 25B-D024N104
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 25B-D024N104 AC Drive 15HP
The 25B-D024N104 is a PowerFlex 525 Adjustable Frequency AC Drive from Allen-Bradley. AC Drive, 11 kW (15 HP), 480V AC Input, 3 PH, 50-60 Hz, 24 A Output, IP20, UL-NEMA Type Open, Panel Mounting, With Brake IGBT, V PerHz-Sensorless Vector-Closed Loop Vector-Perm Magnet Motor Control, Safe Torque-Off PID-SIL2 Cat 3, Safe Torque, Off PID, SIL2 Cat 3. This drive operates when supplied with nominal voltage of 480VAC, 3-Phase. It delivers output power of 11.0 kW or 15.0 HP for both normal and heavy-duty operation. The drive’s output Current is 24.0 Amperes with an IP20 NEMA / Open rated enclosure.
Specifications of Allen-Bradley 25B-D024N104 AC Drive 15HP 11kW
- Brand: Allen-Bradley
- Built-in communication port: Ethernet I/P / RS485
- Integrated safety: Safe-Torque Off (STO) functionality
- Control Method: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control.
- Enclosure Rating: IP20 / NEMA UL Type Open
- Installation: Panel Mount / DIN Rail
- I/O: Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA
- Output Power: 7.5 kW or 10.0 HP
- Output Voltage: 0-460VAC
- Input Voltage: 323-528 VAC
- Input Phase: 3-Phase
- Output Current: 24.0 A
- Frame Size: Frame C
- Voltage: Three Phase, 480 VAC
- Interface Module: Standard
- Zero Stacking: Supported
- EMC Filtering Options: No Filter
Additional information
| Weight | 22 lbs |
|---|---|
| Dimensions | 18 × 16 × 22 in |
