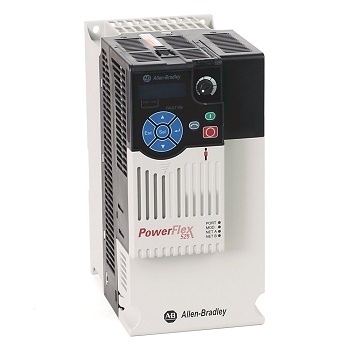

Allen-Bradley 25B-D037N114 AC Drive 18.5kW 25HP 25BD037N114
$4,280.00
AVAILABILITY: Generally allow 7-10 days to ship
10 in stock
Description
Allen-Bradley 25B-D037N114 AC Drive 18.5kW 25HP 25BD037N114
- Extended Product Type: AC Drive
- Product ID: 25B-D037N114
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 25B-D037N114 AC Drive 18.5kW
The Allen-Bradley 25B-D037N114 is a PowerFlex 525 Variable Frequency Drive (VFD). AC Drive, 18.5 kW (25 HP), 480V AC Input, 3 PH, 50-60 Hz, 37 A Output, IP20, UL-NEMA Type Open, Panel Mounting, With Brake IGBT, With Integral EMC Filter, V Per Hz-Sensorless Vector-Closed Loop Vector-Perm Magnet Motor Control, Safe Torque-Off PID-SIL2 Cat 3, Safe Torque. This VFD is powered with an input voltage range of 323-528VAC, 3-phase with applicable motor output 30.0A and Power of 15.0 kW (20.0 HP) for normal duty and Heavy duty operation.
Specifications of Allen-Bradley 25B-D037N114 AC Drive 18.5kW 25HP
- Brand: Allen-Bradley
- Optional communication protocols: Dual Ethernet I/P; DeviceNet; ProfiBus DP
- Control Method: Ethernet I/P / RS485
- Enclosure Rating: IP20 / NEMA UL Type Open
- Zero Stacking: Supported
- Installation: Panel Mount / DIN Rail
- I/O: Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA
- Output Power: 18.5 kW or 25.0 HP for normal and 15.0 kW or 20.0 HP heavy-duty operation
- Output Voltage: 0-460VAC
- Input Voltage: 480VAC
- Input Phase: 3-Phase
- Output Current: 37.0 A
- Frame Size: Frame E
- Voltage: Three Phase, 480 VAC
- Interface Module: Standard
- EMC Filtering Options: Filter
Additional information
Weight | 40 lbs |
---|---|
Dimensions | 18 × 16 × 22 in |
