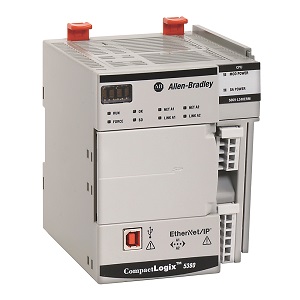

Allen-Bradley 5069-L320ERM Ethernet I/O Module 5069L320ERM

• Extended Product Type: PLC
• Product ID: 5069-L320ERM
• Allen-Bradley Type Designation: PLC

Description of Allen-Bradley 5069-L320ERM I/O Module

The 5069-L320ERM controller is a standard controller from the CompactLogix 5069/5380 series that has been designed and manufactured by Allen-Bradley. It only has 2 MB of user memory and no safety memory. The 5069-L320ERM standard controller can run 32 tasks and up to 1000 programs per task at a time. It can also support up to 40 Ethernet/IP nodes at a time in an Ethernet network. The 5069-L320ERM standard controller can handle 8 motion control axes at a time.

Specification of Allen-Bradley 5069-L320ERM Ethernet I/O Module

• Series: CompactLogix 5069
• Communication Ports: 1 Type B 2.0 Full-Speed USB and 2 Ethernet/IP Ports
• Application Memory: 2 Megabytes
• Module Type: CompactLogix Controller
• No. of Ethernet nodes: 40 Ethernet/IP Nodes
• No. of supported sockets: 32
• Local I/O modules: 16 I/O modules
• Ethernet/IP Nodes: 40 Ethernet/IP Nodes
• Dimensions: 5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm)
• Weight: 0.39 lbs (175 g)
