Description

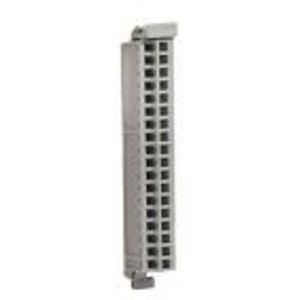

Allen-Bradley 5069-RTB18-SPRING

• Extended Product Type : PLC

• Product ID  : 5069-RTB18-SPRING

• Allen-Bradley Type Designation : PLC

Description

• The 5069-RTB18-SPRING removable terminal block has been designed and manufactured by Allen-Bradley/Rockwell Automation as part of the CompactLogix 5069 series. It comes with 18 pins. The 5069-RTB18-SPRING removable terminal block is designed to host a CompactLogix module and to make wiring the module easy. It uses stranded or solid copper wire that has a gauge of 22 to 16 AWG and a temperature rating of at least 221 degrees Fahrenheit. The 5069-RTB18-SPRING removable terminal block itself can operate at 32 to 140 degrees Fahrenheit.

Specification of Allen-Bradley 5069-RTB18-SPRING

• Series : CompactLogix 5069
• Module Type : Spring Type Terminal Block Kit
• Number of Pins : 18 Pins
• Number of Outputs : 4 Form C (SPDT)
• Output Voltage Range : 5-264 Volts AC or 5-125 Volts DC
• Power Dissipation : 2.6 Watts
• Dimensions : 5.4 x 0.87 x 4.2 in (138 x 22 x 105 mm)
• Weight : 0.39 lbs (175 g)
