Description

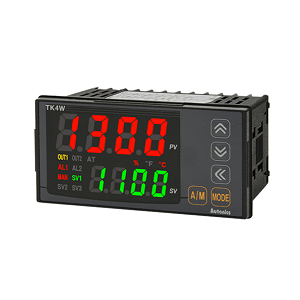

Autonics Temperature Control TK4W-B4RC

• Extended Product Type : Other

• Product ID : TK4W-B4RC

• Autonics Type Designation : Other

Specification of Autonics TK4W-B4RC

• Display method : 4-digit 7-segment LED
• Control method : ON/OFF control, P, PI, PD, PID control
• Input specification : Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
  RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω
  Analog: 0-100mV, 0-5V, 1-5V, 0-10V , 0-20mA, 4-20mA
• Sampling cycle :  50ms
• Control output 1 : Relay(250VAC~ 3A)
• Control output 2 : Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF]
• Option input : CT, Digital(DI-1)
• Power supply : 100-240VAC~ 50/60Hz
• Control period : Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec
• Weight : Approx. 211g
