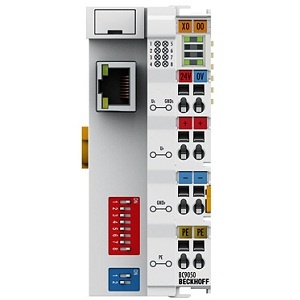

Beckhoff Ethernet TCP/IP Bus Terminal Controller BC9050

Description

Beckhoff Ethernet TCP/IP Bus Terminal Controller BC9050

• Extended Product Type : Other

• Product ID : BC9050

• Beckhoff Type Designation : Other

Specification of Beckhoff BC9050

• Programming : via TwinCAT and programming interface or Ethernet
• Program memory : 48 kbytes
• PLC cycle time : approx. 1.5 ms for 1,000 instructions (without I/O cycle, K-bus)
• Number of Bus Terminals : 64 (255 with K-bus extension)
• Digital peripheral signals : 2,040 inputs/outputs
• Power supply : 24 V DC (-15 %/+20 %)
• Input current : 70 mA + (total K-bus current)/4, 500 mA max.
• Current supply K-bus : 1750 mA
• Weight : approx. 100 g
