Description

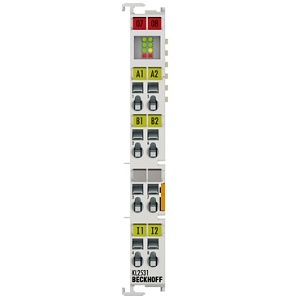

Beckhoff Terminal KL2531

• Extended Product Type : Other

• Product ID : KL2531

• Beckhoff Type Designation : Other

Specification of Beckhoff KL2531

• Technology : compact Drive Technology
• Load type : 2-phase stepper motor (uni-/bipolar)
• Number of channels : 1
• Number of outputs : 1 x stepper motor
• Number of inputs :  2 x end position
• Connection technology : direct motor connection
• Supply voltage power : 24 V DC (internally via power contacts)
• Output current : max. 1.5 A
• Current consumption K-bus : typ. 60 mA
• Weight : approx. 50 g
