Description

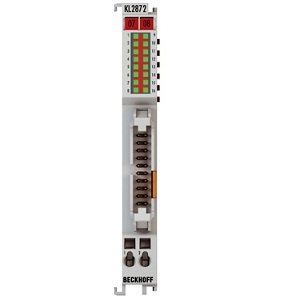

Beckhoff Terminal KL2872

• Extended Product Type : Other

• Product ID : KL2872

• Beckhoff Type Designation : Other

Specification of Beckhoff KL2872

• Connection technology : flat-ribbon cable
• Number of outputs : 16
• Rated load voltage : 24 V DC (-15 %/+20 %)
• Load type : ohmic, inductive, lamp load
• Max. output current : 0.5 A (short-circuit-proof) per channel
• Current consumption power contacts : typ. 60 mA from the supply
• Current consumption from K-bus : 5 mA
• Weight : approx. 55 g
